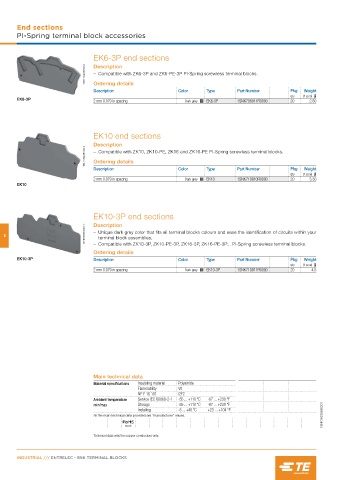

Page 224 - Entrelec Terminal Blocks Master Catalog

End sections
PI-Spring terminal block accessories

EK6-3P end sections
1SNK160236V0014 Description
– Compatible with ZK6-3P and ZK6-PE-3P PI-Spring screwless terminal blocks.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
EK6-3P
2 mm 0.079 in spacing Dark grey EK6-3P 1SNK708911R0000 20 2.80

EK10 end sections
Description
1SNK160238V0014 Ordering details
– Compatible with ZK10, ZK10-PE, ZK16 and ZK16-PE PI-Spring screwless terminal blocks.

Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK10 1SNK710910R0000 20 3.30
EK10

EK10-3P end sections
1SNK160318V0014 Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
5 – Compatible with ZK10-3P, ZK10-PE-3P, ZK16-3P, ZK16-PE-3P... PI-Spring screwless terminal blocks.
terminal block assemblies,

Ordering details
EK10-3P Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK10-3P 1SNK710911R0000 20 4.5

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values. 1SNK160095S0201
RoHS

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
