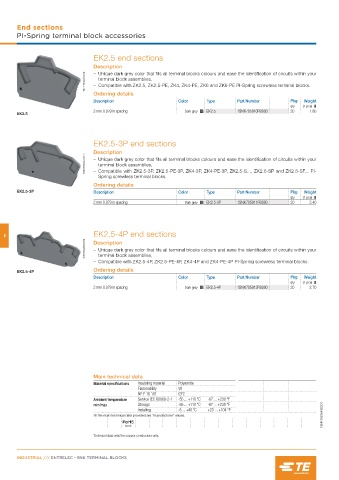

Page 222 - Entrelec Terminal Blocks Master Catalog

End sections
PI-Spring terminal block accessories

EK2.5 end sections
Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
1SNK160233V0014 – Compatible with ZK2.5, ZK2.5-PE, ZK4, ZK4-PE, ZK6 and ZK6-PE PI-Spring screwless terminal blocks.
terminal block assemblies,
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5 1SNK705910R0000 20 1.80
EK2.5

EK2.5-3P end sections
Description
1SNK160234V0014 – Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
terminal block assemblies,
– Compatible with ZK2.5-3P, ZK2.5-PE-3P, ZK4-3P, ZK4-PE-3P, ZK2.5-S..., ZK2.5-SP and ZK2.5-SF... PI-
Spring screwless terminal blocks.
Ordering details
EK2.5-3P Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5-3P 1SNK705911R0000 20 2.40

5 EK2.5-4P end sections
1SNK160235V0014 Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
terminal block assemblies,
– Compatible with ZK2.5-4P, ZK2.5-PE-4P, ZK4-4P and ZK4-PE-4P PI-Spring screwless terminal blocks.
Ordering details
EK2.5-4P
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5-4P 1SNK705912R0000 20 2.70

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values. 1SNK160064S0201
RoHS

Technical data valid for copper conductors only.
