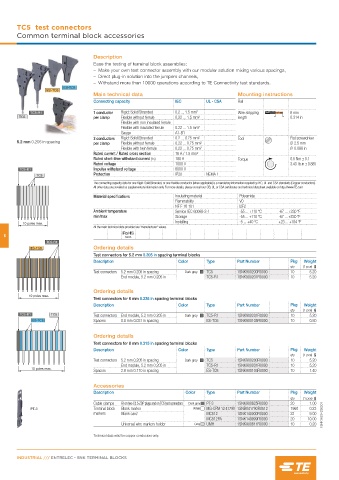

Page 218 - Entrelec Terminal Blocks Master Catalog

TC5 test connectors
Common terminal block accessories

Description
Ease the testing of terminal block assemblies:
– Make your own test connector assembly with our modular solution mixing various spacings,
– Direct plug-in solution into the jumpers channels,
– Withstand more than 10000 operations according to TE Connectivity test standards.
ES-TC8
ES-TC6
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail
TC5-R1 1 conductor Rigid: Solid/Stranded 0.2 ... 1.5 mm² Wire stripping 8 mm
TC5 per clamp Flexible without ferrule 0.22 ... 1.5 mm² length 0.314 in
Flexible with non insulated ferrule
Flexible with insulated ferrule 0.22 ... 1.5 mm²
Gauge A1-B1
2 conductors Rigid: Solid/Stranded 0.2 ... 0.75 mm² Tool Flat screwdriver
5.2 mm 0.205 in spacing per clamp Flexible without ferrule 0.22 ... 0.75 mm² Ø 2.5 mm
Flexible with twin ferrule 0.22 ... 0.75 mm² Ø 0.098 in
Rated current / Rated cross section 16 A / 1.5 mm²
Rated short-time withstand current (1s) 180 A Torque 0.5 Nm ± 0.1
Rated voltage 1000 V 3.43 lb.in ± 0.885
TC5-R1 Impulse withstand voltage 8000 V
TC5 Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
10 poles max.
All the main technical data provided are "manufacturer" values
5 RoHS
TC5-R1
ES-TC6 Ordering details
Test connectors for 5.2 mm 0.205 in spacing terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20

Ordering details
10 poles max.
Test connectors for 6 mm 0.236 in spacing terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
TC5-R1 TC5 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
ES-TC8 Spacers 0.8 mm 0.031 in spacing ES-TC6 1SNK900105R0000 10 0.80

Ordering details
Test connectors for 8 mm 0.315 in spacing terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
10 poles max.
Spacers 2.8 mm 0.110 in spacing ES-TC8 1SNK900104R0000 10 1.40
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Cable clamps Fit on two C2.5-ZDP plugs and on TC5 test connectors Dark grey PT-3 1SNK900625R0000 20 1.00
PT-3 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00 1SNK160042S0201
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Technical data valid for copper conductors only.
