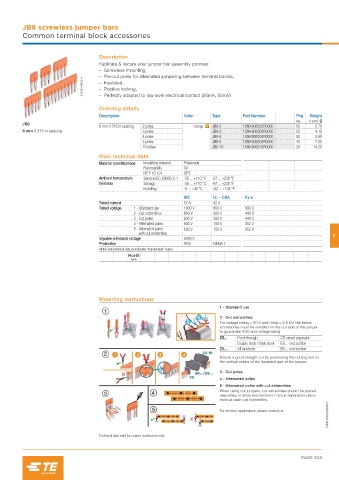

Page 213 - Entrelec Terminal Blocks Master Catalog

JB8 screwless jumper bars
Common terminal block accessories

Description
Facilitate & secure your jumper bar assembly process:
– Screwless mounting,
– Pre-cut poles for alternated jumpering between terminal blocks,
1SNK160146F0014 – Insulated,
– Positive locking,
– Perfectly adapted to low level electrical contact (20mA, 50mV).

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
JB8
8 mm 0.315 in spacing 2 poles Orange JB8-2 1SNK908302R0000 50 2.70
8 mm 0.315 in spacing 3 poles JB8-3 1SNK908303R0000 50 4.10
4 poles JB8-4 1SNK908304R0000 50 5.60
5 poles JB8-5 1SNK908305R0000 40 7.00
10 poles JB8-10 1SNK908310R0000 20 14.20
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F3
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA Ex e
Rated current 57 A 42 A
Rated voltage 1 - Standard use 1000 V 600 V 693 V
2 - Cut extremities 800 V 300 V 440 V
3 - Cut poles 630 V 300 V 440 V
4 - Alternated poles 630 V 150 V 352 V
5 - Alternated poles 630 V 150 V 352 V
with cut extremities 5
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
All the main technical data are indicative “manufacturer” values.

RoHS

Mounting instructions
1 - Standard use
2 - Cut extremities
For voltage rating > 50 V and Uimp > 2.5 KV, the below
accessories must be installed on the cut side of the jumper
to guarantee IP20 and voltage rating:
ZS... Feed-through CS circuit separator
Double deck / triple deck ES… end section
ZK… All functions EK… end section
Ensure a good straight cut by positioning the cutting tool on
the vertical snicks of the insulated part of the jumper.
3 - Cut poles
4 - Alternated poles
5 - Alternated poles with cut extremities
When using cut jumpers, cut extremities should be placed
oppositely to allow end sections / circuit separators place-
ment at each cut extremities.
1SNK160030S0201
For all other applications, please consult us.

Technical data valid for copper conductors only.
