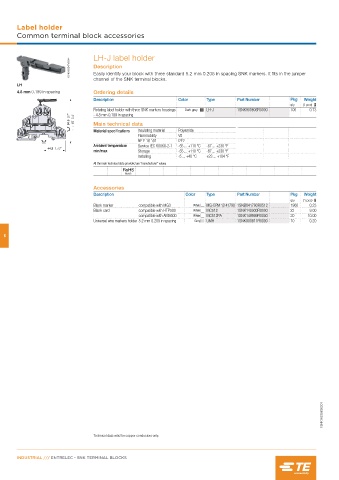

Page 210 - Entrelec Terminal Blocks Master Catalog

Label holder
Common terminal block accessories

1SNK160347V0014 LH-J label holder
Description
Easily identify your block with three standard 5.2 mm 0.205 in spacing SNK markers. It fits in the jumper
channel of the SNK terminal blocks.
LH
4.8 mm 0.189 in spacing Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Rotating label holder with three SNK markers housings Dark grey LH-J 1SNK900606R0000 100 0.73
94.5 3.7" 87 3.4" - 4.8 mm 0.189 in spacing
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
44.9 1.73"
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Blank marker compatible with MG3 White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card compatible with HTP500 White MC512 1SNK140000R0000 22 9.00
compatible with AMS600 White MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

5

1SNK160096S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
