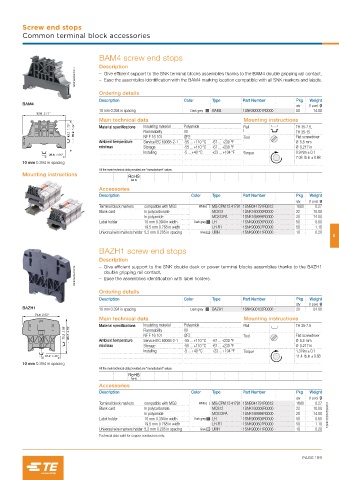

Page 207 - Entrelec Terminal Blocks Master Catalog

Screw end stops
Common terminal block accessories

BAM4 screw end stops
Description
1SNK160333V0014 – Give efficient support to the SNK terminal blocks assemblies thanks to the BAM4 double gripping rail contact,
– Ease the assemblies identification with the BAM4 marking location compatible with all SNK markers and labels.

Ordering details
Description Color Type Part Number Pkg Weight
BAM4 qty (1 pce) g
10 mm 0.394 in spacing Dark grey BAM4 1SNK900001R0000 50 14.00
53.6 2.11"
Main technical data Mounting instructions
43.7 1.72" 36.2 1.42" Material specifications Insulating material Polyamide Rail TH 35-7.5,
Flammability
V0
TH 35-15
Ambient temperature NF F 16 101 I2F2 -67 ... +230 °F Tool Flat screwdriver
Service IEC 60068-2-1
Ø 5.5 mm
-55 ... +110 °C
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.217 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 0.9 Nm ± 0.1
26.8 1.06"
7.08 lb.in ± 0.88
10 mm 0.394 in spacing
All the main technical data provided are "manufacturer" values
Mounting instructions
RoHS
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers compatible with MG3 White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
Blank card In polycarbonate MC812 1SNK160000R0000 22 10.00
In polyamide MC812PA 1SNK169999R0000 20 14.00
Label holder 10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
19.5 mm 0.768 in width LH-R1 1SNK900607R0000 50 1.10
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20
5
BAZH1 screw end stops
Description
– Give efficient support to the SNK double deck or power terminal blocks assemblies thanks to the BAZH1
1SNK160094F0014 – Ease the assemblies identification with label holders.
double gripping rail contact,

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
BAZH1 10 mm 0.394 in spacing Dark grey BAZH1 1SNK900102R0000 20 24.00
74.4 2.93"
Main technical data Mounting instructions
Material specifications Insulating material Polyamide Rail TH 35-7.5
73.2 2.88" 65.7 2.59" Flammability V0 Tool Flat screwdriver
I2F2
NF F 16 101
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 5.5 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.217 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 1.3 Nm ± 0.1
37.2 1.46" 11.4 lb.in ± 0.88
10 mm 0.394 in spacing
All the main technical data provided are "manufacturer" values

RoHS
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers compatible with MG3 White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
Blank card In polycarbonate MC812 1SNK160000R0000 22 10.00
In polyamide MC812PA 1SNK169999R0000 20 14.00 1SNK160026S0201
Label holder 10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
19.5 mm 0.768 in width LH-R1 1SNK900607R0000 50 1.10
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

Technical data valid for copper conductors only.

PAGE 199
