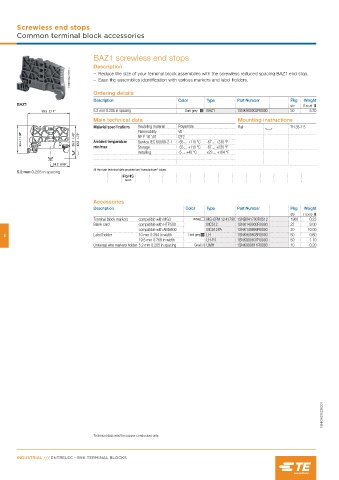

Page 208 - Entrelec Terminal Blocks Master Catalog

Screwless end stops
Common terminal block accessories

BAZ1 screwless end stops
Description
1SNK160247V0014 – Reduce the size of your terminal block assemblies with the screwless reduced spacing BAZ1 end stop,
– Ease the assemblies identification with various markers and label holders.

Ordering details
Description Color Type Part Number Pkg Weight
BAZ1 qty (1 pce) g
53.5 2.11" 5.2 mm 0.205 in spacing Dark grey BAZ1 1SNK900002R0000 50 5.30
Main technical data Mounting instructions
Material specifications Insulating material Polyamide Rail TH 35-7.5
Flammability V0
34.2 / 1.35" 35.7 1.43" 43.2 1.72" Ambient temperature NF F 16 101 I2F2 -67 ... +230 °F
Service IEC 60068-2-1
-55 ... +110 °C
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F

24.2 0.95"
All the main technical data provided are "manufacturer" values
5.2 mm 0.205 in spacing
RoHS

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers compatible with MG3 White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card compatible with HTP500 MC512 1SNK140000R0000 22 9.00
compatible with AMS600 MC512PA 1SNK149999R0000 20 10.00
5 Label holder 10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
19.5 mm 0.768 in width LH-R1 1SNK900607R0000 50 1.10
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

1SNK160002S0201

Technical data valid for copper conductors only.
