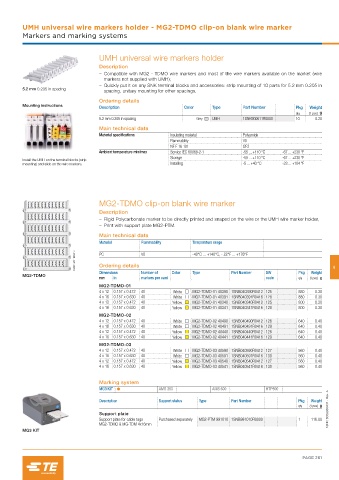

Page 269 - Entrelec Terminal Blocks Master Catalog

UMH universal wire markers holder - MG2-TDMO clip-on blank wire marker
Markers and marking systems

UMH universal wire markers holder
Description
– Compatible with MG2 - TDMO wire markers and most of the wire markers available on the market (wire
markers not supplied with UMH);
– Quickly put it on any SNK terminal blocks and accessories: strip mounting of 10 parts for 5.2 mm 0.205 in
5.2 mm 0.205 in spacing
spacing, unitary mounting for other spacings.
Ordering details
Mounting instructions
Description Color Type Part Number Pkg Weight
qty (1 pce) g
5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature min/max Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
Storage -55 ... +110 °C -67 ... +230 °F
Install the UMH on the terminal blocks (strip
mounting) and slide on the wire markers. Installing -5 ... +40 °C -23 ... +104 °F

MG2-TDMO clip-on blank wire marker
Description
– Rigid Polycarbonate marker to be directly printed and snaped on the wire or the UMH wire marker holder,
– Print with support plate MG2-PTM.
Main technical data
Material Flammability Temperature range
1SNC160118F0014 PC V0 -40°C ... +140°C, - 22°F ... +176°F

Ordering details
Dimensions Number of Color Type Part Number SW Pkg Weight 6
MG2-TDMO
mm in markers per card code qty (1 pce) g
MG2-TDMO-01
4 x 12 0.157 x 0.472 40 White MG2-TDMO-01 40390 1SNB040390R0412 125 880 0.30
4 x 16 0.157 x 0.630 40 White MG2-TDMO-01 40391 1SNB040391R0416 128 880 0.30
4 x 12 0.157 x 0.472 40 Yellow MG2-TDMO-01 40340 1SNB040340R0412 125 800 0.30
4 x 16 0.157 x 0.630 40 Yellow MG2-TDMO-01 40341 1SNB040341R0416 128 800 0.30
MG2-TDMO-02
4 x 12 0.157 x 0.472 40 White MG2-TDMO-02 40490 1SNB040490R0412 126 640 0.40
4 x 16 0.157 x 0.630 40 White MG2-TDMO-02 40491 1SNB040491R0416 129 640 0.40
4 x 12 0.157 x 0.472 40 Yellow MG2-TDMO-02 40440 1SNB040440R0412 126 640 0.40
4 x 16 0.157 x 0.630 40 Yellow MG2-TDMO-02 40441 1SNB040441R0416 129 640 0.40
MG2-TDMO-03
4 x 12 0.157 x 0.472 40 White MG2-TDMO-03 40590 1SNB040590R0412 127 560 0.40
4 x 16 0.157 x 0.630 40 White MG2-TDMO-03 40591 1SNB040591R0416 130 560 0.40
4 x 12 0.157 x 0.472 40 Yellow MG2-TDMO-03 40540 1SNB040540R0412 127 560 0.40
4 x 16 0.157 x 0.630 40 Yellow MG2-TDMO-03 40541 1SNB040541R0416 130 560 0.40

Marking system
MG3 KIT z AMS 250 AMS 600 HTP500
1SNK160083S0201 - Rev. A
Description Support status Type Part Number Pkg Weight
qty (1 pce) g
Support plate
Support plate for cable tags Purchased separately MG2-PTM 991010 1SNB991010R0000 1 116.00
MG2-TDMO & MG-TDM 4x16mm
MG3 KIT

PAGE 261
