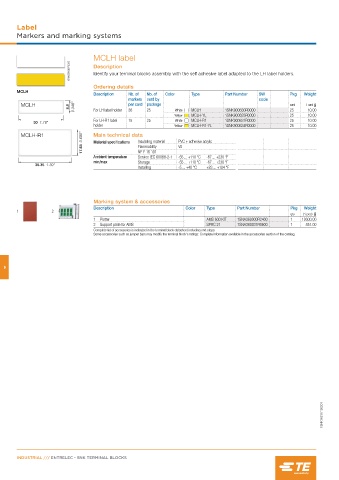

Page 272 - Entrelec Terminal Blocks Master Catalog

Label
Markers and marking systems

MCLH label
1SNK500098F0000 Description

Identify your terminal blocks assembly with the self adhesive label adapted to the LH label holders.

Ordering details
MCLH
Description Nb. of Nb. of Color Type Part Number SW Pkg Weight
markers card by code
MCLH per card package card 1 card g
8.8 0.346" For LH label holder 36 25 White MCLH 1SNK900630R0000 25 10.00
Yellow MCLH-YL 1SNK900633R0000 25 10.00
30 1.18" For LH-R1 label 15 25 White MCLH-R1 1SNK900631R0000 25 10.00
holder Yellow MCLH-R1-YL 1SNK900634R0000 25 10.00
17.65 0.695" Material specifications Insulating material PVC + adhesive acrylic
MCLH-R1 Main technical data
Flammability
V0
Service IEC 60068-2-1
Ambient temperature NF F 16 101 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
35.35 1.39"
Installing -5 ... +40 °C +23 ... +104 °F

Marking system & accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 Plotter AMS 600 KIT 1SNA360000R2400 1 12600.00
2 Support plate for AMS SPRC 21 1SNA360031R0600 1 851.00
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
