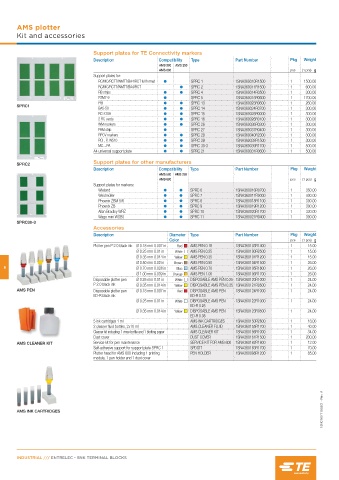

Page 276 - Entrelec Terminal Blocks Master Catalog

AMS plotter
Kit and accessories

Support plates for TE Connectivity markers
Description Compatibility Type Part Number Pkg Weight
AMS 500 AMS 250
AMS 600 pce (1 pce) g
Support plates for:
RC/MC/RCTT/WMTT/BA4/RCT full format z SPRC 1 1SNA360010R1500 1 1500.00
RC/MC/RCTT/WMTT/BA4/RCT z SPRC 2 1SNA360011R1500 1 600.00
RB strips z z SPRC 4 1SNA360014R0500 1 300.00
RTM7-9 z SPRC 5 1SNA360015R0600 1 1700.00
PIB z z SPRC 13 1SNA360023R0600 1 260.00
SPRC1
BA5-50 z z SPRC 14 1SNA360024R0700 1 300.00
RC-X10A z z SPRC 15 1SNA360025R0000 1 300.00
2 RC cards z z SPRC 16 1SNA360026R0100 1 300.00
WM markers z z SPRC 26 1SNA360036R0300 1 300.00
PAM strip z SPRC 27 1SNA360037R0400 1 300.00
RPCV markers z z SPRC 28 1SNA360040R2300 1 300.00
RCL, P, W510 z z SPRC 29 1SNA360038R1500 1 300.00
MC... PA z z SPRC 30-3 1SNA360039R1700 1 500.00
A4 universal support plate z z SPRC 21 1SNA360031R0600 1 500.00
Support plates for other manufacturers
SPRC2
Description Compatibility Type Part Number Pkg Weight
AMS 500 AMS 250
AMS 600 pce (1 pce) g
Support plates for markers:
Wieland z z SPRC 6 1SNA360016R0700 1 350.00
Weidmüller z z SPRC 7 1SNA360017R0000 1 400.00
Phoenix ZBM 5/6 z z SPRC 8 1SNA360018R1100 1 300.00
Phoenix ZB z z SPRC 9 1SNA360019R1200 1 300.00
Allen Bradley WRZ z z SPRC 10 1SNA360020R1700 1 330.00
Wago mini WSB5 z z SPRC 11 1SNA360021R0400 1 300.00
SPRC30-3
Accessories
Description Diameter Type Part Number Pkg Weight
Color pce (1 pce) g
Plotter pen P 2.0 black ink Ø 0.18 mm 0.007 in Red AMS PEN 0.18 1SNA360103R1400 1 15.00
Ø 0.25 mm 0.01 in White AMS PEN 0.25 1SNA360100R2500 1 15.00
Ø 0.35 mm 0.014 in Yellow AMS PEN 0.35 1SNA360101R1200 1 15.00
Ø 0.50 mm 0.02 in Brown AMS PEN 0.50 1SNA360104R1500 1 26.00
6 Ø 0.70 mm 0.028 in Blue AMS PEN 0.70 1SNA360105R1600 1 26.00
Ø 1.00 mm 0.039 in Orange AMS PEN 1.00 1SNA360106R1700 1 26.00
Disposable plotter pen Ø 0.25 mm 0.01 in White DISPOSABLE AMS PEN 0.25 1SNA360120R1000 1 24.00
P 2.0 black ink Ø 0.35 mm 0.014 in Yellow DISPOSABLE AMS PEN 0.35 1SNA360121R0500 1 24.00
AMS PEN Disposable plotter pen Ø 0.18 mm 0.007 in Red DISPOSABLE AMS PEN 1SNA360124R1000 1 24.00
ED-R black ink ED-R 0.18
Ø 0.25 mm 0.01 in White DISPOSABLE AMS PEN 1SNA360122R1000 1 24.00
ED-R 0.25
Ø 0.35 mm 0.014 in Yellow DISPOSABLE AMS PEN 1SNA360123R0500 1 24.00
ED-R 0.35
5 ink cartridges 1 ml AMS INK CARTRIDGES 1SNA360150R2600 1 18.00
2 cleaner fluid bottles, 2x10 ml AMS CLEANER FLUID 1SNA360155R1700 1 40.00
Cleaner kit including: 1 rinse bottle and 1 blotting paper AMS CLEANER KIT 1SNA360156R1000 1 34.00
Dust cover DUST COVER 1SNA360161R1500 1 200.00
AMS CLEANER KIT Service kit for pen maintenance SERVICE KIT FOR AMS 600 1SNA360162R1600 1 12.00
Self-adhesive support for support plate SPRC 1 SPDST1 1SNA360163R1700 1 70.00
Plotter head for AMS 600 including 1 printing PEN HOLDER 1SNA360098R1200 1 85.00
module, 1 pen holder and 1 dust cover

1SNC160111S0201 - Rev. A

AMS INK CARTRIDGES 1SNC160111S0201
