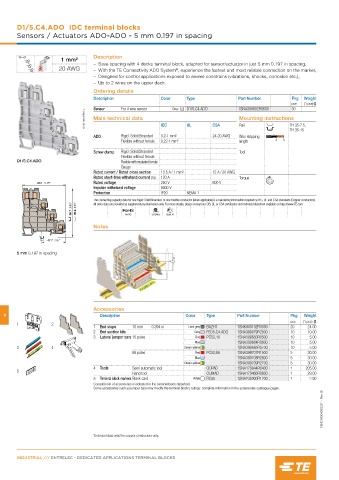

Page 496 - Entrelec Terminal Blocks Master Catalog

D1/5.C4.ADO IDC terminal blocks
Sensors / Actuators ADO-ADO - 5 mm 0.197 in spacing

Description
1 mm²
– Save spacing with 4 decks terminal block, adapted for sensor/actuator in just 5 mm 0.197 in spacing,
20 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires on the upper deck.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Sensor
Grey
For 4 wire sensor
50
1SNA399692R0600
D1/5.C4.ADO
1SNC163137F0014 Main technical data Mounting instructions
CSA
UL
TH 35-7.5,
Rail
IEC
TH 35-15
ADO Rigid: Solid/Stranded 0.2-1 mm² 24-20 AWG Wire stripping
Flexible without ferrule 0.22-1 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
D1/5.C4.ADO Flexible with insulated ferrule
Gauge
Rated current / Rated cross section 13.5 A / 1 mm² 12 A / 20 AWG
Rated short-time withstand current (1s) 120 A Torque
80.1 3.15" Rated voltage 250 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
96.7 3.80" 89.2 3.51" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C
US
RoHS
Gost R
cCSAus
Notes
47.7 1.87"
5 mm 0.197 in spacing

Accessories
9 Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End section kits Grey FED5.C4.ADO 1SNA399679R2000 10 10.00
3 Lateral jumper bars 10 poles Red PC52.10 1SNA399683R0500 10 5.00
Blue 1SNA399684R0600 10 5.00
3 4 Green-yellow 1SNA399685R0700 10 5.00
66 poles Red PC52.66 1SNA399707R1500 5 30.00
Blue 1SNA399708R2600 5 30.00
Green-yellow 1SNA399709R2700 5 30.00
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163046S0201 - Rev. B

Technical data valid for copper conductors only.
