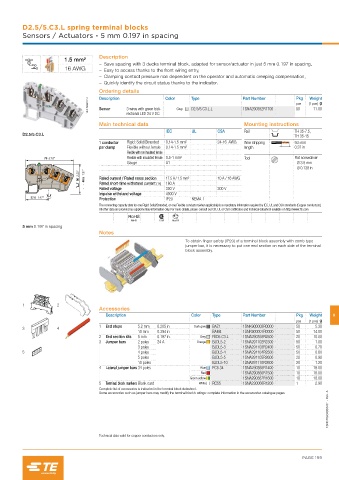

D2.5/5.C3.L spring terminal blocks
Sensors / Actuators - 5 mm 0.197 in spacing

Description
1.5 mm²
– Save spacing with 3 decks terminal block, adapted for sensor/actuator in just 5 mm 0.197 in spacing,
16 AWG – Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Quickly identify the circuit status thanks to the indicator.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC162082F0014 Sensor 3 wires with green bidi- Grey D2.5/5.C3.L.L 1SNA290352R1700 pce (1 pce) g
11.00
50
rectional LED 24 V DC
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
D2.5/5.C3.L
TH 35-15
1 conductor Rigid: Solid/Stranded 0.14-1.5 mm² 24-16 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.14-1.5 mm² length 0.37 in
Flexible with non insulated ferrule
79 3.10" Flexible with insulated ferrule 0.5-1 mm² Tool Flat screwdriver
Gauge A1 Ø 3.5 mm
Ø 0.138 in
56 2.20" 48.5 1.91" Rated current / Rated cross section 17.5 A / 1.5 mm² 10 A / 16 AWG

Rated short-time withstand current (1s) 180 A
Rated voltage 300 V 300 V
Impulse withstand voltage 4000 V
37.5 1.47"
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS CSA Gost R
5 mm 0.197 in spacing
Notes
To obtain finger safety (IP20) of a terminal block assembly with comb type
jumper bar, it is necessary to put one end section on each side of the terminal
block assembly.

1 2
Accessories
Description Color Type Part Number Pkg Weight 9
pce (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
3 4
10 mm 0.394 in BAM4 1SNK900001R0000 50 14.00
2 End section kits 5 mm 0.197 in. Grey FED5.C3.L 1SNA290358R2500 20 10.00
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
5 4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Lateral jumper bars 34 poles Blue PC5.34 1SNA290365R1400 10 18.00
Red 1SNA290366R1500 10 18.00
Green-yellow 1SNA290367R1600 10 18.00
5 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
1SNC162028S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
