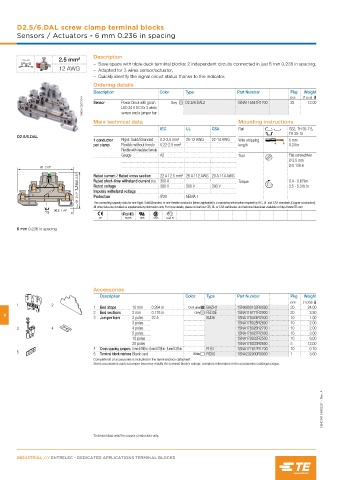

Page 488 - Entrelec Terminal Blocks Master Catalog

D2.5/6.DAL screw clamp terminal blocks
Sensors / Actuators - 6 mm 0.236 in spacing

Description
2.5 mm²
– Save space with triple deck terminal blocks: 2 independent circuits connected in just 6 mm 0.236 in spacing,
12 AWG – Adapted for 3 wires sensor/actuator,
– Quickly identify the signal circuit status thanks to the indicator.
Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
pce
1SNC161222F0014 Sensor Power block with green Grey D2.5/6.DAL2 1SNA115547R1700 25 12.00
LED 24 V DC for 3 wires
sensor and a jumper bar
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
D2.5/6.DAL
1 conductor Rigid: Solid/Stranded 0.2-2.5 mm² 20-12 AWG 22-14 AWG Wire stripping 6 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.24 in
Flexible with insulated ferrule
Gauge A2 Tool Flat screwdriver
Ø 3.5 mm
81 3.19" Ø 0.138 in
58.5 2.30" Rated current / Rated cross section 22 A / 2.5 mm² 26 A / 12 AWG 20 A / 14 AWG Torque 0.4 - 0.6 Nm
300 A
Rated short-time withstand current (1s)
Rated voltage 380 V 300 V 300 V 3.5 - 5.3 lb.in
Impulse withstand voltage
51 2.01" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
36.5 1.44"
CE RoHS USR CSA Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 3 mm 0.118 in Grey FED3E 1SNA116771R2000 20 3.80
9
3 Jumper bars 2 poles 22 A BJD6 1SNA178024R2500 10 1.00
3 poles 1SNA178025R2600 10 2.00
3 4 4 poles 1SNA178026R2700 10 2.00
5 poles 1SNA178027R2000 10 3.00
10 poles 1SNA178032R2500 10 6.00
20 poles 1SNA178033R2600 5 12.00
4 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL61 1SNA177812R1700 10 0.10
5
5 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161149S0201 - Rev. A

Technical data valid for copper conductors only.
