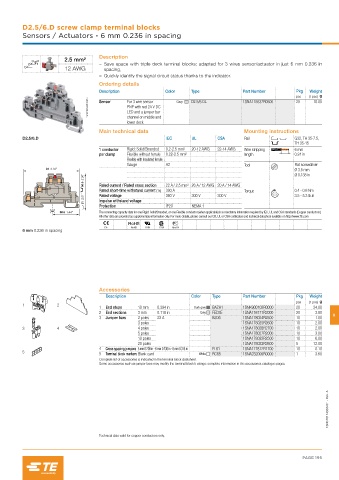

D2.5/6.D screw clamp terminal blocks
Sensors / Actuators - 6 mm 0.236 in spacing

Description
2.5 mm²
– Save space with triple deck terminal blocks: adapted for 3 wires sensor/actuator in just 6 mm 0.236 in
12 AWG spacing,
– Quickly identify the signal circuit status thanks to the indicator.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC161225F0014 PNP with red 24 V DC
Sensor
10.00
25
D2.5/6.DL
1SNA115537R0500
For 3 wire sensor
Grey
LED and a jumper bar
channel on middle and
lower deck
Main technical data Mounting instructions
D2.5/6.D IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-2.5 mm² 20-12 AWG 22-14 AWG Wire stripping 6 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.24 in
Flexible with insulated ferrule
Gauge A2 Tool Flat screwdriver
81 3.19" Ø 3.5 mm
Ø 0.138 in
58.5 2.30" Rated current / Rated cross section 22 A / 2.5 mm² 26 A / 12 AWG 20 A / 14 AWG
Rated short-time withstand current (1s) 300 A Torque 0.4 - 0.6 Nm
51 2.01" Rated voltage 380 V 300 V 300 V 3.5 - 5.3 lb.in
Impulse withstand voltage
Protection IP20 NEMA 1
36.5 1.44" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CSA Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 3 mm 0.118 in Grey FED3E 1SNA116771R2000 20 3.80 9
3 Jumper bars 2 poles 22 A BJD6 1SNA178024R2500 10 1.00
3 poles 1SNA178025R2600 10 2.00
3 4 4 poles 1SNA178026R2700 10 2.00
5 poles 1SNA178027R2000 10 3.00
10 poles 1SNA178032R2500 10 6.00
20 poles 1SNA178033R2600 5 12.00
4 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL61 1SNA177812R1700 10 0.10
5
5 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161146S0201 - Rev. A

Technical data valid for copper conductors only.
