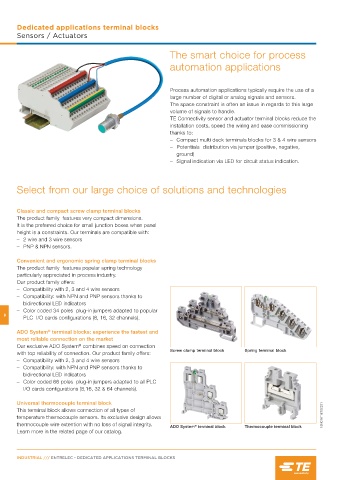

Page 482 - Entrelec Terminal Blocks Master Catalog

Dedicated applications terminal blocks
Sensors / Actuators

The smart choice for process

automation applications

Process automation applications typically require the use of a
large number of digital or analog signals and sensors.
The space constraint is often an issue in regards to this large
volume of signals to handle.
TE Connectivity sensor and actuator terminal blocks reduce the
installation costs, speed the wiring and ease commissioning
thanks to:
– Compact multi deck terminals blocks for 3 & 4 wire sensors
– Potentials distribution via jumper (positive, negative,
ground)
– Signal indication via LED for circuit status indication.

Select from our large choice of solutions and technologies

Classic and compact screw clamp terminal blocks
The product family features very compact dimensions.
It is the preferred choice for small junction boxes when panel
height is a constraints. Our terminals are compatible with:
– 2 wire and 3 wire sensors
– PNP & NPN sensors.

Convenient and ergonomic spring clamp terminal blocks
The product family features popular spring technology
particularly appreciated in process industry.
Our product family offers:
– Compatibility with 2, 3 and 4 wire sensors
– Compatibility: with NPN and PNP sensors thanks to
bidirectional LED indicators
– Color coded 34 poles plug-in jumpers adapted to popular
9
PLC I/O cards configurations (8, 16, 32 channels).
®
ADO System terminal blocks: experience the fastest and
most reliable connection on the market
®
Our exclusive ADO System combines speed on connection
Screw clamp terminal block Spring terminal block
with top reliability of connection. Our product family offers:
– Compatibility with 2, 3 and 4 wire sensors
– Compatibility: with NPN and PNP sensors thanks to
bidirectional LED indicators
– Color coded 66 poles plug-in jumpers adapted to all PLC
I/O cards configurations (8,16, 32 & 64 channels).

Universal thermocouple terminal block
This terminal block allows connection of all types of
temperature thermocouple sensors. Its exclusive design allows 1SNC161167S0201
thermocouple wire extention with no loss of signal integrity.
®
ADO System terminal block Thermocouple terminal block
Learn more in the related page of our catalog.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
