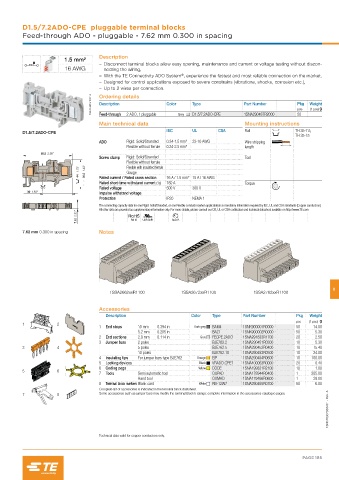

Page 477 - Entrelec Terminal Blocks Master Catalog

D1.5/7.2ADO-CPE pluggable terminal blocks
Feed-through ADO - pluggable - 7.62 mm 0.300 in spacing

Description
1.5 mm²
– Disconnect terminal blocks allow easy opening, maintenance and current or voltage testing without discon-
16 AWG necting the wiring,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
1SNC163131F0014 Ordering details Color Grey Type Part Number Pkg Weight
Description
(1 pce) g
pce
Feed-through
2 ADO, 1 pluggable
D1.5/7.2ADO-CPE
50
1SNA290487R2000
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
D1.5/7.2ADO-CPE
TH 35-15
ADO Rigid: Solid/Stranded 0.34-1.5 mm² 22-16 AWG Wire stripping
Flexible without ferrule 0.34-2.5 mm² length
65.5 2.58"
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
44 1.73" 36.5 1.44" Flexible with insulated ferrule
Gauge
Rated current / Rated cross section
180 A
Rated short-time withstand current (1s) 16 A / 1.5 mm² 15 A / 16 AWG Torque
Rated voltage 500 V 300 V
39 1.53"
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
7.62 0.30" RoHS USR CNR Gost R
7.62 mm 0.300 in spacing Notes

8
1SSA2662xxR1100 1SSA2672xxR1100 1SSA2762xxR1100

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.9 mm 0.114 in Grey FECPE.2ADO 1SNA291833R1700 20 2.50
3 Jumper bars 2 poles BJE762.2 1SNA290451R0300 10 5.30
3 4 5 poles BJE762.5 1SNA290452R0400 10 15.40
10 poles BJE762.10 1SNA290453R0500 10 24.00
4 Insulating tips For jumper bars type BJE762 Orange EIP 1SNA290454R0600 10 100.00
5 Locking devices Black VRADO.CPE7 1SNA400063R0000 20 0.40
6 Coding pegs Yellow COCE 1SNA199321R2100 10 1.00
5 6
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RB-12W7 1SNA290455R0700 50 6.00
Complete list of accessories is indicated in the terminal block datasheet.
1SNC163076S0201 - Rev. A
7 8 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
