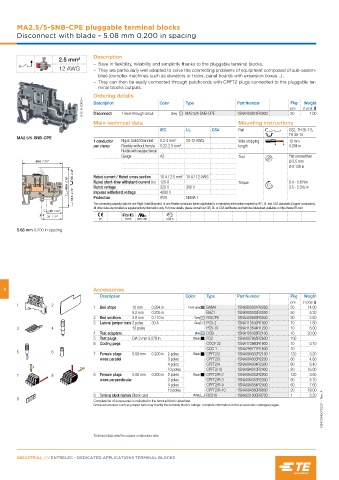

Page 474 - Entrelec Terminal Blocks Master Catalog

MA2.5/5-SNB-CPE pluggable terminal blocks
Disconnect with blade - 5.08 mm 0.200 in spacing

Description
2.5 mm²
– Save in flexibility, reliability and simplicity thanks to the pluggable terminal blocks,
12 AWG – They are particularly well adapted to solve the connecting problems of equipment composed of sub-assem-
blies (complex machines such as elevators or trains, panel boards with extension boxes...),
– They can then be easily connected through patchcords with CPFT2 plugs connected to the pluggable ter-
minal blocks outputs.
Ordering details
1SNC161303F0014 Description 1 feed-through circuit Color Grey Type Part Number Pkg (1 pce) g
Weight
pce
MA2.5/5-SNB-CPE
Disconnect
7.00
50
1SNA400815R0000
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
MA2.5/5-SNB-CPE
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Wire stripping 10 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.394 in
Flexible with insulated ferrule
Gauge A3 Tool Flat screwdriver
58.5 2.30" Ø 3.5 mm
Ø 0.138 in
63 2.48" Rated current / Rated cross section 10 A / 2.5 mm² 10 A / 12 AWG
60.5 2.38" Rated short-time withstand current (1s) 120 A 300 V Torque 0.4 - 0.6 Nm
320 V
3.5 - 5.3 lb.in
Rated voltage
55.5 2.19" Impulse withstand voltage 4000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
26 1.02"
31 1.22"
CE RoHS USR CNR Gost R
5.08 mm 0.200 in spacing

8 Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FE2CPE 1SNA400826R0000 20 2.50
3 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
3 4 10 poles PC5-10 1SNA113544R1200 10 6.00
4 Test adapters Blue DCB 1SNA105028R2100 10 20.00
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
6 Coding pegs COCF 32 1SNA173660R1600 10 0.10
COC 1 1SNA299777R1600 10
5 6
7 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/2 1SNA094302R2100 120 3.20
wires parallel 3 poles CPFT2/3 1SNA094303R2200 80 4.80
4 poles CPFT2/4 1SNA094304R2300 60 6.40
10 poles CPFT2/10 1SNA094310R2400 20 16.00
7 8 8 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/R-2 1SNA094352R2200 120 3.80
wires perpendicular 3 poles CPFT2/R-3 1SNA094353R2300 80 5.70
4 poles CPFT2/R-4 1SNA094354R2400 60 7.60
10 poles CPFT2/R-10 1SNA094360R0600 20 19.00
1SNC164007S0201 - Rev. A
9 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
9
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
