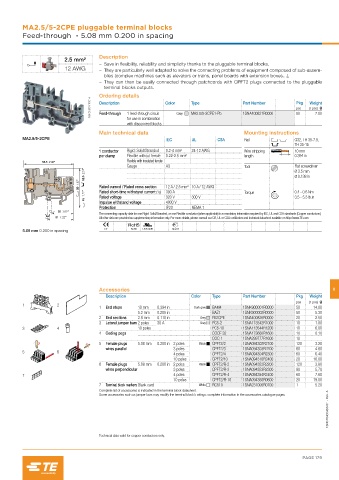

MA2.5/5-2CPE pluggable terminal blocks
Feed-through - 5.08 mm 0.200 in spacing

Description
2.5 mm²
– Save in flexibility, reliability and simplicity thanks to the pluggable terminal blocks,
12 AWG – They are particularly well adapted to solve the connecting problems of equipment composed of sub-assem-
blies (complex machines such as elevators or trains, panel boards with extension boxes...),
– They can then be easily connected through patchcords with CPFT2 plugs connected to the pluggable
terminal blocks outputs.
Ordering details
1SNC161311F0014 Description 1 feed-through circuit Color Type Part Number Pkg (1 pce) g
Weight
pce
Feed-through
MA2.5/5-2CPE1-Pb
1SNA400821R0000
7.00
50
for use in combination Grey
with disconnect blocks
Main technical data Mounting instructions
MA2.5/5-2CPE IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Wire stripping 10 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.394 in
58.5 2.30" Flexible with insulated ferrule
Gauge A3 Tool Flat screwdriver
52.5 2.07" Ø 3.5 mm
Ø 0.138 in
50 1.97" Rated current / Rated cross section 12 A / 2.5 mm² 10 A / 12 AWG
45 1.77" Rated short-time withstand current (1s) 300 A 300 V Torque 0.4 - 0.6 Nm
Rated voltage
320 V
3.5 - 5.3 lb.in
Impulse withstand voltage 4000 V
Protection IP20 NEMA 1
26 1.02"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
31 1.22" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CNR Gost R
5.08 mm 0.200 in spacing

Accessories 8
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FE2CPE 1SNA400826R0000 20 2.50
3 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
3 4 10 poles PC5-10 1SNA113544R1200 10 6.00
4 Coding pegs COCF 32 1SNA173660R1600 10 0.10
COC 1 1SNA299777R1600 10
5 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/2 1SNA094302R2100 120 3.20
wires parallel 3 poles CPFT2/3 1SNA094303R2200 80 4.80
5 6
4 poles CPFT2/4 1SNA094304R2300 60 6.40
10 poles CPFT2/10 1SNA094310R2400 20 16.00
6 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/R-2 1SNA094352R2200 120 3.80
wires perpendicular 3 poles CPFT2/R-3 1SNA094353R2300 80 5.70
7 4 poles CPFT2/R-4 1SNA094354R2400 60 7.60
10 poles CPFT2/R-10 1SNA094360R0600 20 19.00
7 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
1SNC164004S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
