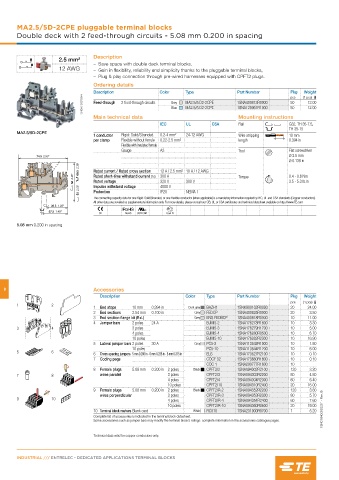

Page 472 - Entrelec Terminal Blocks Master Catalog

MA2.5/5D-2CPE pluggable terminal blocks
Double deck with 2 feed-through circuits - 5.08 mm 0.200 in spacing

Description
2.5 mm²
– Save space with double deck terminal blocks,
12 AWG – Gain in flexibility, reliability and simplicity thanks to the pluggable terminal blocks,
– Plug & play connection through pre-wired harnesses equipped with CPFT2 plugs.
Ordering details
Weight
Description Color Type Part Number Pkg (1 pce) g
1SNC161302F0014 Feed-through 2 feed-through circuits Grey MA2.5/5.D2-2CPE 1SNA400813R0000 50 12.00
pce
1SNA125961R1000
MA2.5/5.D2-2CPE
12.00
50
Blue
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
MA2.5/5D-2CPE
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Wire stripping 10 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.394 in
Flexible with insulated ferrule
Gauge A3 Tool Flat screwdriver
74.5 2.93" Ø 3.5 mm
Ø 0.138 in
60.5 2.38" Rated current / Rated cross section 12 A / 2.5 mm² 10 A / 12 AWG
58 2.26" Rated short-time withstand current (1s) 300 A 300 V Torque 0.4 - 0.6 Nm
3.5 - 5.3 lb.in
320 V
Rated voltage
53 2.09" Impulse withstand voltage 4000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
32.5 1.28"
37.5 1.48"
CE RoHS USR CNR Gost R
5.08 mm 0.200 in spacing

8 Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 2.54 mm 0.100 in Grey FEDCP 1SNA400825R0000 20 3.50
3 End section-flange kit (R+L) Grey ENS.FEDBCP 1SNA400818R0000 10 11.00
4 Jumper bars 2 poles 24 A BJMI5-2 1SNA176278R1600 10 3.30
3 4 3 poles BJMI5-3 1SNA176279R1700 10 5.00
4 poles BJMI5-4 1SNA176280R0500 10 6.70
10 poles BJMI5-10 1SNA176282R2300 10 16.90
5 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 6
6 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
7 Coding pegs COCF 32 1SNA173660R1600 10 0.10
COC 1 1SNA299777R1600 10
8 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/2 1SNA094302R2100 120 3.20
7 8 wires parallel 3 poles CPFT2/3 1SNA094303R2200 80 4.80
4 poles CPFT2/4 1SNA094304R2300 60 6.40
10 poles CPFT2/10 1SNA094310R2400 20 16.00
9 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/R-2 1SNA094352R2200 120 3.80
wires perpendicular 3 poles CPFT2/R-3 1SNA094353R2300 80 5.70
9 10 4 poles CPFT2/R-4 1SNA094354R2400 60 7.60
10 poles CPFT2/R-10 1SNA094360R0600 20 19.00
10 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20 1SNC164005S0201 - Rev. B
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
