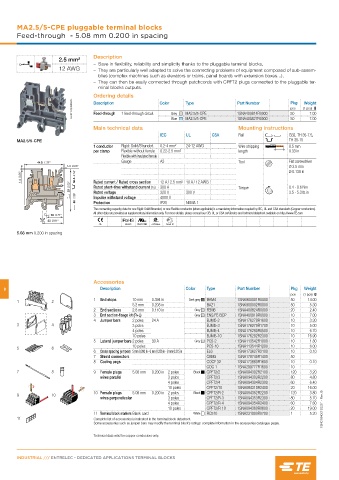

Page 468 - Entrelec Terminal Blocks Master Catalog

MA2.5/5-CPE pluggable terminal blocks
Feed-through - 5.08 mm 0.200 in spacing

Description
2.5 mm²
– Save in flexibility, reliability and simplicity thanks to the pluggable terminal blocks,
12 AWG – They are particularly well adapted to solve the connecting problems of equipment composed of sub-assem-
blies (complex machines such as elevators or trains, panel boards with extension boxes...),
– They can then be easily connected through patchcords with CPFT2 plugs connected to the pluggable ter-
minal blocks outputs.
Ordering details
1SNC161306F0014 Description 1 feed-through circuit Color Grey Type Part Number Pkg (1 pce) g
Weight
pce
1SNA400814R0000
Feed-through
50
7.00
MA2.5/5-CPE
1SNA400827R0000
50
7.00
MA2.5/5-CPE
Blue
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
MA2.5/5-CPE TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Wire stripping 8.5 mm
per clamp Flexible without ferrule 0.22-2.5 mm² length 0.33 in
Flexible with insulated ferrule
44.5 1.75" Gauge A3 Tool Flat screwdriver
1.4 0.06" Ø 3.5 mm
Ø 0.138 in
1.4 0.06" 55.5 2.18" Rated current / Rated cross section 12 A / 2.5 mm² 10 A / 12 AWG
53 2.09" Rated short-time withstand current (1s) 300 A 300 V Torque 0.4 - 0.6 Nm
320 V
3.5 - 5.3 lb.in
Rated voltage
48 1.89" Impulse withstand voltage 4000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
18 0.71"
23 0.91" C US
CE RoHS USR CNR cCSAus Gost R
5.08 mm 0.200 in spacing

Accessories
8 Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
1 2
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA400824R0000 20 2.40
3 End section-flange kit (R+L) Grey ENS.FE-BCP 1SNA400819R0000 10 7.00
4 Jumper bars 2 poles 24 A BJMI5-2 1SNA176278R1600 10 3.30
3 4 3 poles BJMI5-3 1SNA176279R1700 10 5.00
4 poles BJMI5-4 1SNA176280R0500 10 6.70
10 poles BJMI5-10 1SNA176282R2300 10 16.90
5 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 6
6 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
7 Shield connectors CBM5 1SNA178745R1400 50
8 Coding pegs COCF 32 1SNA173660R1600 10 0.10
COC 1 1SNA299777R1600 10
7 8 9 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/2 1SNA094302R2100 120 3.20
wires parallel 3 poles CPFT2/3 1SNA094303R2200 80 4.80
4 poles CPFT2/4 1SNA094304R2300 60 6.40
10 poles CPFT2/10 1SNA094310R2400 20 16.00
10 Female plugs 5.08 mm 0.200 in 2 poles Black CPFT2/R-2 1SNA094352R2200 120 3.80
9 10
wires perpendicular 3 poles CPFT2/R-3 1SNA094353R2300 80 5.70
4 poles CPFT2/R-4 1SNA094354R2400 60 7.60
10 poles CPFT2/R-10 1SNA094360R0600 20 19.00 1SNC164001S0201 - Rev. B
11 Terminal block markers Blank card White RC510 1SNA231000R0700 1 5.20
11 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
