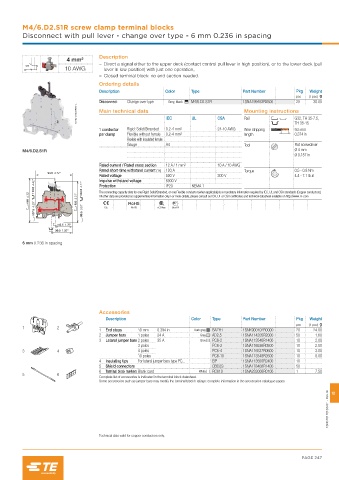

Page 539 - Entrelec Terminal Blocks Master Catalog

M4/6.D2.S1R screw clamp terminal blocks
Disconnect with pull lever - change over type - 6 mm 0.236 in spacing

Description
4 mm²
– Direct a signal either to the upper deck (contact control pull lever in high position), or to the lower deck (pull
10 AWG lever in low position) with just one operation,
– Closed terminal block: no end section needed.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Disconnect Change over type Grey, black M4/6.D2.S1R 1SNA199452R2500 25 30.00
1SNC161337F0014 Main technical data IEC UL CSA Mounting instructions

Rail
G32, TH 35-7.5,
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-10 AWG Wire stripping TH 35-15
9.5 mm
per clamp Flexible without ferrule 0.2-4 mm² length 0.374 in
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/6.D2.S1R Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 12 A / 1 mm² 10 A / 10 AWG
Rated short-time withstand current (1s) 120 A Torque 0.5 - 0.8 Nm
94.5 3.72"
Rated voltage 500 V 300 V 4.4 - 7.1 lb.in
6000 V
112.5 4.42" 104.5 4.11" Protection IP20 NEMA 1
Impulse withstand voltage
110 4.33" 102 4.01" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
107.5 4.23" 99.5 3.91" CE RoHS cCSAus Gost R
US
C
45.5 1.79"
50.5 1.99"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 Lateral jumper bars 2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
3 poles PC6-3 1SNA116536R0500 10 2.00
3 4 4 poles PC6-4 1SNA116537R0600 10 3.00
10 poles PC6-10 1SNA113548R2600 10 8.00
4 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
5 Shield connectors CBD2S 1SNA178408R1400 50
6 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages. 12
1SNC161161S0201 - Rev. B

Technical data valid for copper conductors only.
