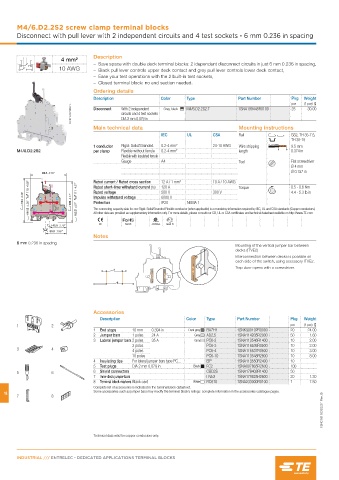

Page 538 - Entrelec Terminal Blocks Master Catalog

M4/6.D2.2S2 screw clamp terminal blocks
Disconnect with pull lever with 2 independent circuits and 4 test sockets - 6 mm 0.236 in spacing

Description
4 mm²
– Save space with double deck terminal blocks: 2 idependent disconnect circuits in just 6 mm 0.236 in spacing,
10 AWG – Black pull lever controls upper deck contact and grey pull lever controls lower deck contact,
– Ease your test operations with the 2 built-in test sockets,
– Closed terminal block: no end section needed.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC161073F0014 circuits and 4 test sockets
With 2 independent
Grey, black
25
M4/6.D2.2S2.T
30.00
1SNA199448R0100
Disconnect
DIA 2 mm 0.079 in
Main technical data Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 24-10 AWG Wire stripping 9.5 mm
M4/6.D2.2S2 per clamp Flexible without ferrule 0.2-4 mm² length 0.374 in
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
94.5 3.72" Ø 0.157 in
119 4.68" 111 4.37" Rated current / Rated cross section 12 A / 1 mm² 10 A / 10 AWG Torque 0.5 - 0.6 Nm
120 A
Rated short-time withstand current (1s)
114 4.48" 106 4.17" Rated voltage 500 V NEMA 1 300 V 4.4 - 5.3 lb.in
Impulse withstand voltage
6000 V
111.5 4.38" 103.5 4.07" The connecting capacity data for one Rigid: Solid/Stranded Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
IP20
Protection
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
45.5 1.79" CE RoHS cCSAus Gost R
50.5 1.98"
Notes
6 mm 0.236 in spacing
Mounting of the vertical jumper bar between
decks (ITVE2)
Interconnection between decks is possible on
each side of the switch, using accessory ITVE2.
Trap door opens with a screwdriver.

Accessories
Description Color Type Part Number Pkg Weight
1 2 pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 Lateral jumper bars 2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
3 poles PC6-3 1SNA116536R0500 10 2.00
3 4 4 poles PC6-4 1SNA116537R0600 10 3.00
10 poles PC6-10 1SNA113548R2600 10 8.00
4 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 6 6 Shield connectors CBD2S 1SNA178408R1400 50
7 Inner deck jumper bars ITVE2 1SNA179825R2600 20 1.30
8 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
12 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161160S0201 Rev. B
7 8

Technical data valid for copper conductors only.
