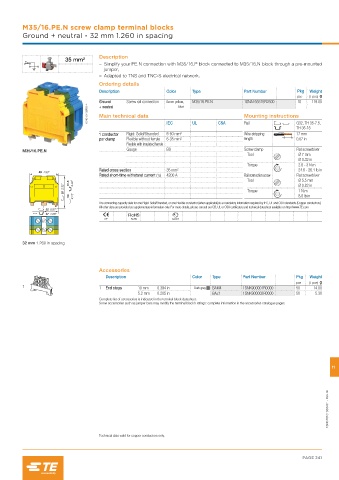

Page 533 - Entrelec Terminal Blocks Master Catalog

M35/16.PE.N screw clamp terminal blocks
Ground + neutral - 32 mm 1.260 in spacing

Description
35 mm²
N
– Simplify your PE.N connection with M35/16.P block connected to M35/16.N block through a pre-mounted
jumper,
– Adapted to TNS and TNC-S electrical network.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Screw rail connection Green-yellow, M35/16.PE.N 1SNA165575R2500 10 119.00
1SNC161169F0014 Main technical data Mounting instructions
+ neutral
blue
CSA
Rail
IEC
G32, TH 35-7.5,
UL
TH 35-15
1 conductor Rigid: Solid/Stranded 6-50 mm² Wire stripping 17 mm
per clamp Flexible without ferrule 6-35 mm² length 0.67 in
Flexible with insulated ferrule
Gauge B9 Screw clamp Flat screwdriver
M35/16.PE.N
Tool Ø 7 mm
Ø 0.32 in
Torque 2.8 - 3 N.m
Rated cross section 35 mm² 24.6 - 26.1 lb.in
49 1.93"
Rated short-time withstand current (1s) 4200 A Rail connection screw Flat screwdriver
61.5 2.42" Tool Ø 5.5 mm
59 2.32" Torque 1 N.m
Ø 0.22 in
54 2.13" 8.8 lb.in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
22 0.87"
27 1.06"
CE RoHS Gost R
32 mm 1.260 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

11

1SNC161016S0201 - Rev. B

Technical data valid for copper conductors only.

PAGE 241
