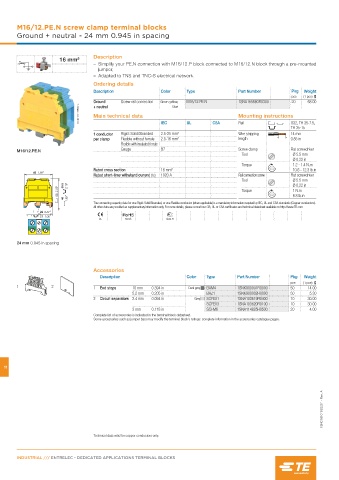

Page 532 - Entrelec Terminal Blocks Master Catalog

M16/12.PE.N screw clamp terminal blocks
Ground + neutral - 24 mm 0.945 in spacing

Description
16 mm²
N
– Simplify your PE.N connection with M16/12.P block connected to M16/12.N block through a pre-mounted
jumper,
– Adapted to TNS and TNC-S electrical network.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Screw rail connection Green-yellow, M16/12.PE.N 1SNA165680R0300 20 68.00
1SNC161176F0014 Main technical data Mounting instructions
blue
+ neutral
G32, TH 35-7.5,
CSA
Rail
IEC
UL
TH 35-15
1 conductor Rigid: Solid/Stranded 2.5-25 mm² Wire stripping 14 mm
per clamp Flexible without ferrule 2.5-16 mm² length 0.55 in
Flexible with insulated ferrule
Gauge B7 Screw clamp Flat screwdriver
M16/12.PE.N
Tool Ø 5.5 mm
Ø 0.22 in
Torque 1.2 - 1.4 N.m
Rated cross section 16 mm² 10.6 - 12.3 lb.in
49 1.93"
Rated short-time withstand current (1s) 1920 A Rail connection screw Flat screwdriver
Tool Ø 5.5 mm
55.5 2.18" Ø 0.22 in
53 2.09" Torque 1 N.m
48 1.89" 8.8 lb.in
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
22 0.87"
27 1.06"
CE RoHS Gost R
24 mm 0.945 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 Circuit separators 2.4 mm 0.094 in Grey SCFEX1 1SNA103619R0400 10 30.00
SCFEX3 1SNA103620R0100 10 30.00
3 mm 0.118 in SCFM6 1SNA114825R0500 20 4.00
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

11

1SNC161015S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
