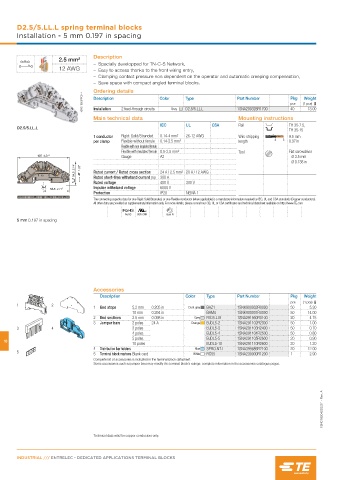

Page 528 - Entrelec Terminal Blocks Master Catalog

D2.5/5.LL.L spring terminal blocks
Installation - 5 mm 0.197 in spacing

Description
2.5 mm²
– Specially developped for TN-C-S Network,
12 AWG – Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Save space with compact angled terminal blocks.
Ordering details
1SNC162097F0014 Description 2 feed-through circuits Color Grey Type Part Number Pkg (1 pce) g
Weight
pce
40
Installation
D2.5/5.LL.L
1SNA290328R1700
13.00
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
D2.5/5.LL.L
TH 35-15
1 conductor Rigid: Solid/Stranded 0.14-4 mm² 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.14-2.5 mm² length 0.37 in
Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-2.5 mm² Tool Flat screwdriver
107 4.21" Gauge A2 Ø 3.5 mm
Ø 0.138 in
54.5 2.14" 47 1.85" Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 400 V 300 V
53.5 2.11" Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R
5 mm 0.197 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
10 mm 0.394 in BAM4 1SNK900001R0000 50 14.00
2 End sections 2.5 mm 0.098 in Grey FED5.L.B 1SNA291560R0100 20 4.75
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Distribution bar holders Blue SPBO.NT.L 1SNA399886R2100 20 12.00
5
5 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC162042S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
