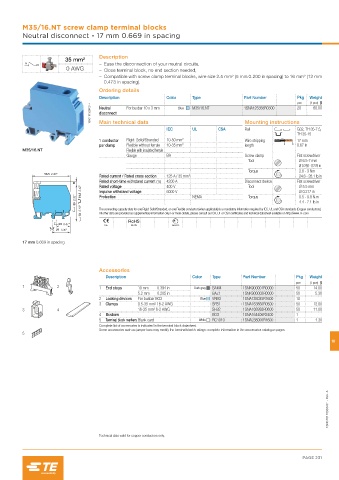

M35/16.NT screw clamp terminal blocks
Neutral disconnect - 17 mm 0.669 in spacing

Description
35 mm²
N – Ease the disconnection of your neutral circuits,
0 AWG – Close terminal block, no end section needed,
– Compatible with screw clamp terminal blocks, wire size 2.5 mm² (5 mm 0.200 in spacing) to 16 mm² (12 mm
0.473 in spacing).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC161308F0014 disconnect
20
Neutral
For busbar 10 x 3 mm
1SNA125358R0300
60.00
M35/16.NT
Blue
Main technical data
Rail
IEC UL CSA Mounting instructions G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 10-50 mm² Wire stripping 17 mm
per clamp Flexible without ferrule 10-35 mm² length 0.67 in
M35/16.NT Flexible with insulated ferrule
Gauge B9 Screw clamp Flat screwdriver
Tool Ø 6.5-7 mm
Ø 0.256 - 0.276 in
Torque 2.8 - 3 Nm
58.5 2.30"
Rated current / Rated cross section 125 A / 35 mm² 24.6 - 26.1 lb.in
Rated short-time withstand current (1s) 4200 A Disconnect device Flat screwdriver
H Rated voltage 400 V Tool Ø 5.5 mm
61.5 2.42" Impulse withstand voltage 6000 V Ø 0.217 in
59 2.32" Protection NEMA Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
54 2.13" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
22 0.87" CE RoHS Gost R
27 1.06"
17 mm 0.669 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 Locking devices For busbar BO3 Blue VRB3 1SNA128035R1600 10
3 Clamps 0.5-35 mm² 18-2 AWG SFB1 1SNA163860R0500 50 12.00
3 4 16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
4 Busbars BO3 1SNA164406R2400 1
5 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
10

1SNC161156S0201 - Rev. A

Technical data valid for copper conductors only.
