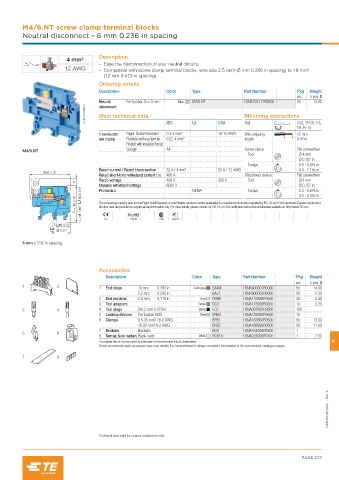

Page 519 - Entrelec Terminal Blocks Master Catalog

M4/6.NT screw clamp terminal blocks
Neutral disconnect - 6 mm 0.236 in spacing

Description
4 mm²
N – Ease the disconnection of your neutral circuits,
12 AWG – Compatible with screw clamp terminal blocks, wire size 2.5 mm² (5 mm 0.200 in spacing) to 16 mm²
(12 mm 0.473 in spacing).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Neutral For busbar 10 x 3 mm Blue M4/6.NT 1SNA125117R0200 50 13.00
1SNC161079F0014 Main technical data Mounting instructions
disconnect

Rail
UL
IEC
G32, TH 35-7.5,
CSA
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG Wire stripping 12 mm
per clamp Flexible without ferrule 0.22-4 mm² length 0.47 in
Flexible with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
M4/6.NT
Tool Ø 4 mm
Ø 0.157 in
Torque 0.5 - 0.8 N.m
Rated current / Rated cross section 32 A / 4 mm² 25 A / 12 AWG 4.4 - 7.1 lb.in
54.5 2.15"
Rated short-time withstand current (1s) 480 A Disconnect device Flat screwdriver
Rated voltage 400 V 300 V Tool Ø 4 mm
H
Impulse withstand voltage 6000 V Ø 0.157 in
55.5 2.18" Protection NEMA Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
53 2.09" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
48 1.89" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS CSA Gost R
18 0.71"
23 0.91"
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Test adapters Green DCV 1SNA173058R0200 10 2.20
3 4 4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 Locking devices For busbar BO3 Blue VRB3 1SNA128035R1600 10
6 Clamps 0.5-35 mm² 18-2 AWG SFB1 1SNA163860R0500 50 12.00
16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
7 Busbars Busbars BO3 1SNA164406R2400 1
5 6
8 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet. 10
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7 8

1SNC161087S0201 - Rev. A

Technical data valid for copper conductors only.
