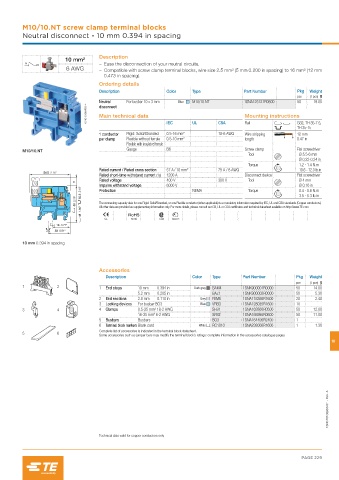

M10/10.NT screw clamp terminal blocks
Neutral disconnect - 10 mm 0.394 in spacing

Description
10 mm²
N – Ease the disconnection of your neutral circuits,
6 AWG – Compatible with screw clamp terminal blocks, wire size 2.5 mm² (5 mm 0.200 in spacing) to 16 mm² (12 mm
0.473 in spacing).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Neutral For busbar 10 x 3 mm Blue M10/10.NT 1SNA125121R0600 50 19.00
1SNC161081F0014 Main technical data Mounting instructions
disconnect

G32, TH 35-7.5,
IEC
CSA
UL
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5-16 mm² 18-6 AWG Wire stripping 12 mm
per clamp Flexible without ferrule 0.5-10 mm² length 0.47 in
Flexible with insulated ferrule
Gauge B6 Screw clamp Flat screwdriver
M10/10.NT
Tool Ø 5.5-6 mm
Ø 0.22-0.24 in
Torque 1.2 - 1.4 N.m
Rated current / Rated cross section 57 A / 10 mm² 75 A / 6 AWG 10.6 - 12.3 lb.in
54.5 2.15"
Rated short-time withstand current (1s) 1200 A Disconnect device Flat screwdriver
Rated voltage 400 V 300 V Tool Ø 4 mm
H
Impulse withstand voltage 6000 V Ø 0.16 in
55.5 2.18" Protection NEMA Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
53 2.09" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
48 1.89" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS CSA Gost R
18 0.71"
23 0.91"
10 mm 0.394 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Locking devices For busbar BO3 Blue VRB3 1SNA128035R1600 10
3 4 4 Clamps 0.5-35 mm² 18-2 AWG SFB1 1SNA163860R0500 50 12.00
16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
5 Busbars Busbars BO3 1SNA164406R2400 1
6 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
5 6
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
10

1SNC161089S0201 - Rev. A

Technical data valid for copper conductors only
