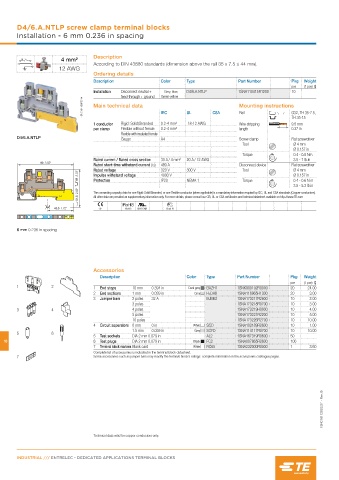

Page 516 - Entrelec Terminal Blocks Master Catalog

D4/6.A.NTLP screw clamp terminal blocks
Installation - 6 mm 0.236 in spacing

Description
N 4 mm²
According to DIN 43880 standards (dimension above the rail 35 x 7.5 ≤ 44 mm).
12 AWG
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Installation Disconnect neutral + Grey, blue, D4/6.A.NTLP 1SNA110415R1200 10
feed-through + ground Green-yellow
1SNC161139F0014 Main technical data IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail

9.5 mm
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.2-4 mm² length 0.37 in
Flexible with insulated ferrule
D4/6.A.NTLP Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
Ø 0.157 in
Torque 0.4 - 0.8 Nm
Rated current / Rated cross section 30 A / 4 mm² 20 A / 12 AWG 3.5 - 7 lb.in
90 3.55"
Rated short-time withstand current (1s) 480 A 300 V Disconnect device Flat screwdriver
Rated voltage
Tool
Ø 4 mm
320 V
59 2.33" Impulse withstand voltage 4000 V NEMA 1 Torque Ø 0.157 in
IP20
Protection
0.4 - 0.6 N.m
3.5 - 5.3 lb.in
51.5 2.03" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
43.5 1.72" CE RoHS USR CNR Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FEDA6 1SNA116965R1300 20 3.00
3 Jumper bars 2 poles 32 A BJM62 1SNA173217R2600 10 2.00
3 poles 1SNA173218R0700 10 3.00
3 4 4 poles 1SNA173219R0000 10 4.00
5 poles 1SNA173221R2200 10 5.00
10 poles 1SNA173226R2700 10 10.00
4 Circuit separators 0 mm 0 in White SCD 1SNA103189R2600 10 1.00
1.5 mm 0.059 in Grey SCFD 1SNA114117R0700 10 10.00
5 6
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA167319R0600 50
10 6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161128S0201 - Rev. B

Technical data valid for copper conductors only.
