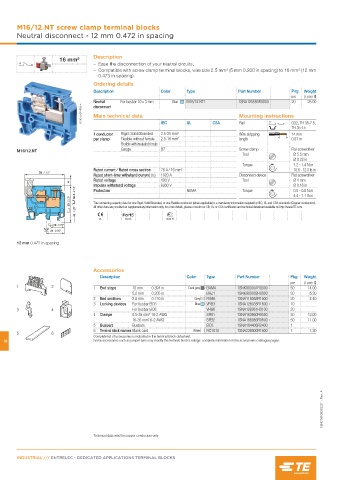

Page 522 - Entrelec Terminal Blocks Master Catalog

M16/12.NT screw clamp terminal blocks
Neutral disconnect - 12 mm 0.472 in spacing

Description
16 mm²
N – Ease the disconnection of your neutral circuits,
– Compatible with screw clamp terminal blocks, wire size 2.5 mm² (5 mm 0.200 in spacing) to 16 mm² (12 mm
0.473 in spacing).
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Neutral For busbar 10 x 3 mm Blue M16/12.NT1 1SNA125593R0000 20 26.00
1SNC161074F0014 Main technical data Mounting instructions
disconnect

UL
IEC
G32, TH 35-7.5,
Rail
CSA
TH 35-15
1 conductor Rigid: Solid/Stranded 2.5-25 mm² Wire stripping 14 mm
per clamp Flexible without ferrule 2.5-16 mm² length 0.51 in
Flexible with insulated ferrule
Gauge B7 Screw clamp Flat screwdriver
M16/12.NT
Tool Ø 5.5 mm
Ø 0.22 in
Torque 1.2 - 1.4 N.m
Rated current / Rated cross section 76 A / 16 mm² 10.6 - 12.3 lb.in
54 2.13"
Rated short-time withstand current (1s) 1920 A Disconnect device Flat screwdriver
Rated voltage 400 V Tool Ø 4 mm
H
Impulse withstand voltage 6000 V Ø 0.16 in
55.5 2.18" Protection NEMA Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
53 2.09" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
48 1.89" All other data are provided as supplementary information only. for more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS Gost R
19 0.75"
24 0.95"
12 mm 0.472 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Locking devices For busbar BO3 Blue VRB3 1SNA128035R1600 10
3 4 For busbar BO6 VRB6 1SNA128361R0100 20
4 Clamps 0.5-35 mm² 18-2 AWG SFB1 1SNA163860R0500 50 12.00
16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
5 Busbars Busbars BO3 1SNA164406R2400 1
6 Terminal block markers Blank card White RC1010 1SNA238000R1600 1 1.30
5 6
Complete list of accessories is indicated in the terminal block datasheet.
10 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161090S0201 - Rev. A

Technical data valid for copper conductors only
