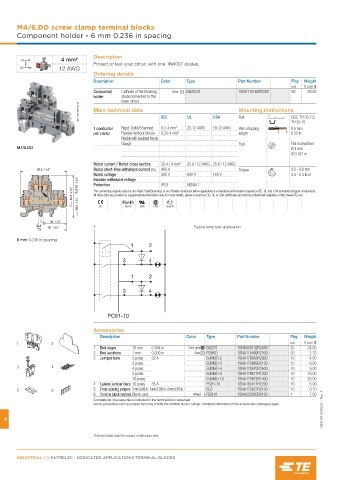

Page 548 - Entrelec Terminal Blocks Master Catalog

M4/6.DD screw clamp terminal blocks
Component holder - 6 mm 0.236 in spacing

Description
4 mm²
Protect or test your circuit with one 1N4007 diodes.
12 AWG
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Component Cathode of the blocking Grey M4/6.DD 1SNA115168R2300 50 20.00
holder diode connected to the
lower circuit
1SNC161208F0014 Main technical data IEC UL CSA Mounting instructions G32, TH 35-7.5,
Rail

8.5 mm
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 22-12 AWG 18-12 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.22-4 mm² length 0.33 in
Flexible with insulated ferrule
Gauge Tool Flat screwdriver
M4/6.DD Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 20 A / 4 mm² 25 A / 12 AWG 25 A / 12 AWG
65.5 2.58" Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.6 Nm
Rated voltage 500 V 600 V 150 V 4.4 - 5.3 lb.in
67 2.64" Impulse withstand voltage IP20 NEMA 1
Protection
64.5 2.54" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
59.5 2.34" CE RoHS USR CSA Gost R

33 1.30"
38 1.50" Typical lamp test application
6 mm 0.236 in spacing

PC61-10

Accessories
Description Color Type Part Number Pkg Weight
1 2 pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FEM6D 1SNA118499R2300 20 2.70
3 Jumper bars 2 poles 32 A BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 6 5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
1SNC161133S0201 - Rev. A
6 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
13

Technical data valid for copper conductors only.
