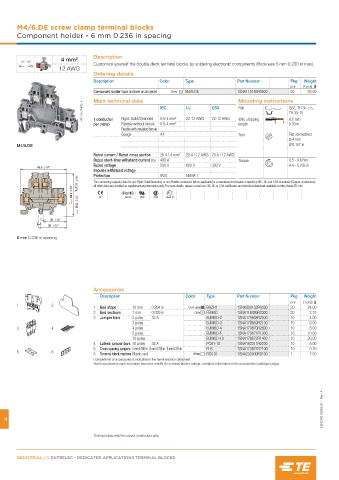

Page 550 - Entrelec Terminal Blocks Master Catalog

M4/6.DE screw clamp terminal blocks
Component holder - 6 mm 0.236 in spacing

Description
4 mm²
Customize yourself the double deck terminal blocks by soldering electronic components (thickness 5 mm 0.200 in max).
12 AWG
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Component holder Upper and lower circuit opened Grey M4/6.DE 1SNA115185R0500 50 20.00
Main technical data
Mounting instructions
1SNC161279F0014 IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor
Flexible without ferrule
0.5-4 mm²
0.33 in
per clamp Rigid: Solid/Stranded 0.5-4 mm² 22-12 AWG 22-12 AWG Wire stripping 8.5 mm
length
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
M4/6.DE Ø 0.157 in
Rated current / Rated cross section 26 A / 4 mm² 20 A / 12 AWG 20 A / 12 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.6 Nm
Rated voltage 500 V 600 V 300 V 4.4 - 5.3 lb.in
65.5 2.58"
Impulse withstand voltage IP20 NEMA 1
Protection
67 2.64" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
64.5 2.54"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
59.5 2.34" CE RoHS USR CSA Gost R

33 1.30"
38 1.50"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FEM6D 1SNA118499R2300 20 2.70
3 Jumper bars 2 poles 32 A BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6
6 Terminal block markers Blank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161136S0201 - Rev. A

13

Technical data valid for copper conductors only.
