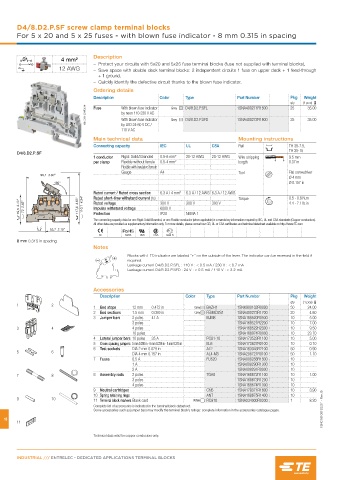

D4/8.D2.P.SF screw clamp terminal blocks
For 5 x 20 and 5 x 25 fuses - with blown fuse indicator - 8 mm 0.315 in spacing

Description
4 mm²
– Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks),
12 AWG – Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through
+ 1 ground,
– Quickly identify the defective circuit thanks to the blown fuse indicator.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNC161034F0014 by neon 110-230 V AC Grey D4/8.D2.P.SFD 1SNA400272R1600 25 35.00
D4/8.D2.P.SFL
1SNA400271R1500
Fuse
With blown fuse indicator
25
35.00
Grey
With blown fuse indicator
by LED 24-60 V DC /
110 V AC
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
D4/8.D2.P.SF
1 conductor Rigid: Solid/Stranded 0.5-6 mm² 20-12 AWG 20-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.5-4 mm² length 0.37 in
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 6.3 A / 4 mm² 6.3 A / 12 AWG 6.3 A / 12 AWG
Rated short-time withstand current (1s) Torque 0.5 - 0.8 N.m
Rated voltage 300 V 300 V 300 V 4.4 - 7.1 lb.in
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
Notes
Blocks with LED indicator are labeled "+" on the outside of the lever. The indicator can be reversed in the field if
required.
Leakage current D4/8.D2.P.SFL : 110 V : < 0.5 mA / 230 V : < 0.7 mA
Leakage current D4/8.D2.P.SFD : 24 V : < 0.5 mA / 110 V : < 2.2 mA

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1 2
1 End stops 12 mm 0.472 in Grey BAZH1 1SNK900102R0000 50 24.00
2 End sections 1.5 mm 0.059 in Grey FEM8D2S1 1SNA400273R1700 20 4.60
3 Jumper bars 2 poles 41 A BJM8 1SNA168520R0500 10 5.00
3 poles 1SNA168521R2200 10 7.00
3 4 4 poles 1SNA168522R2300 10 9.50
10 poles 1SNA168974R0000 10 23.70
4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
5 6
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
7 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
7 8 8 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
9 Neutral cartridges CN5 1SNA179371R1600 10 3.90
10 Spring retaining rings ANT 1SNA168675R1400 10
9 10 11 Terminal block markers Blank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages. 1SNC161081S0201 - Rev. B
13
11

Technical data valid for copper conductors only.
