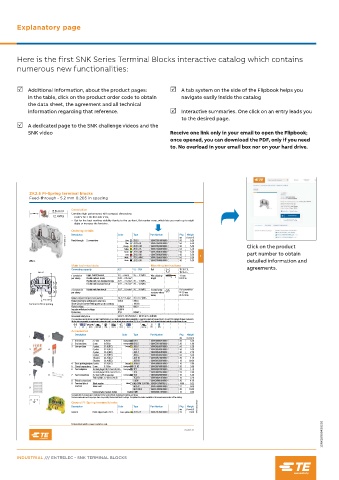

Explanatory page

Here is the first SNK Series Terminal Blocks interactive catalog which contains
numerous new functionalities:

5 Additional information, about the product pages: 5 A tab system on the side of the Flipbook helps you
in the table, click on the product order code to obtain navigate easily inside the catalog
the data sheet, the agreement and all technical
information regarding that reference. 5 Interactive summaries. One click on an entry leads you
to the desired page.
5 A dedicated page to the SNK challenge videos and the
SNK video Receive one link only in your email to open the Flipbook;
once opened, you can download the PDF, only if you need
to. No overload in your email box nor on your hard drive.

ZK2.5 PI-Spring terminal blocks
Feed-through - 5.2 mm 0.205 in spacing

Description
2.5 mm²
Combine high performance with compact dimensions:
12 AWG – 1000 V AC / DC IEC 600 V UL,
– Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight
digits or increase the font size.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
1SNK162052V0014 Feed-through 2 connections Grey ZK2.5 1SNK705010R0000 qty 50 50 5.50
ZK2.5-BL
1SNK705020R0000
5.50
Blue
Orange
ZK2.5-YL
1SNK705060R0000
Yellow ZK2.5-OR 1SNK705030R0000 50 50 5.50 Click on the product
5.50
Green ZK2.5-GN 1SNK705061R0000 50 5.50 part number to obtain
Red ZK2.5-RD 1SNK705062R0000 50 5.50 2
White ZK2.5-WH 1SNK705065R0000 50 5.50
ZK2.5 Black ZK2.5-BK 1SNK705066R0000 50 5.50 detailed information and
Main technical data Mounting instructions agreements.
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
50.9 2" TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
49.2 1.94" 41.7 1.64" Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
per clamp conductor without Ø 3.5 mm
ferrule) Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG
24.6 0.97"
Rated short-time withstand current (1s) 300 A 396 A
5.2 mm 0.205 in spacing Short Circuit Current Rating (with specific conditions) 100 kA
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 21 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/IIC/IIIC
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx Haz Loc BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK2.5 1SNK705910R0000 20 1.80
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Circuit separators 3 mm 0.118 in Dark grey CS-R2 1SNK900106R0000 20 3.80
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 8 7 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
8 Shield connectors SHBP 1SNK900601R0000 20 4.10
9 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
9
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162023S0201
qty (1 pce) g
Ground Profile aligned with ZK2.5 Green-yellow ZK2.5-PE 1SNK705150R0000 20 10.00
1SNK160094S0201
Technical data valid for copper conductors only.
PAGE 21
INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
