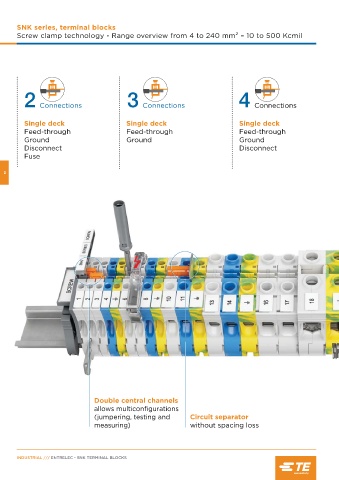

SNK series, terminal blocks
       Screw clamp technology - Range overview from 4 to 240 mm2 – 10 to 500 Kcmil











          2    Connections                    3    Connections                       4    Connections




          Single deck                        Single deck                             Single deck
          Feed-through                       Feed-through                            Feed-through
          Ground                             Ground                                  Ground
          Disconnect                                                                 Disconnect
          Fuse

  3
















































                                  Double central channels
                                  allows multiconfigurations
                                  (jumpering, testing and           Circuit separator
                                  measuring)                        without spacing loss






       INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
