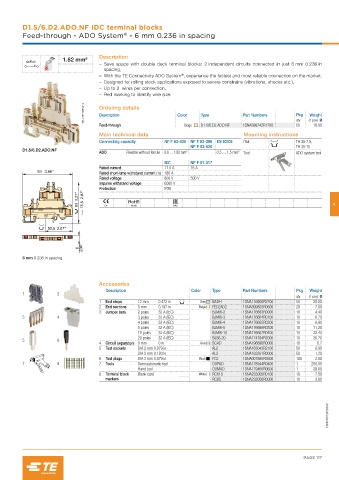

Page 119 - Railways Applications Terminal blocks

D1.5/6.D2.ADO.NF IDC terminal blocks
®
Feed-through - ADO System - 6 mm 0.236 in spacing

Description
1.82 mm²
– Save space with double deck terminal blocks: 2 independent circuits connected in just 6 mm 0.236 in
spacing,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.

1SNC167149F0014 Ordering details Color Type Part Numbers Pkg Weight
Description
Feed-through Beige D1.5/6.D2.ADO.NF 1SNA399742R1700 qty (1 pce) g
18.00
50
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
NF F 63-826 TH 35-15
D1.5/6.D2.ADO.NF
ADO Flexible without ferrule 0.6 … 1.82 mm² 0.5 … 1.5 mm² Tool ADO system tool
IEC NF F 61-017
Rated current 17.5 A 16 A
93 3.66"
Rated short-time withstand current (1s) 180 A
Rated voltage 800 V 500 V
Impulse withstand voltage 6000 V
Protection IP20
3.27" 2.97"
83 75,5 CE RoHS EAC 4

52,6 2.07"

6 .236"
6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 20.00
2 End sections 5 mm 0.197 in Beige FED2AD2 1SNA399803R0600 20 7.00
3 Jumper bars 2 poles 32 A (IEC) BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles 32 A (IEC) BJMI6-3 1SNA176664R0100 10 6.70
4 poles 32 A (IEC) BJMI6-4 1SNA176665R0200 10 8.90
5 poles 32 A (IEC) BJMI6-5 1SNA176666R0300 10 11.20
10 poles 32 A (IEC) BJMI6-10 1SNA176667R0400 10 22.40
20 poles 32 A (IEC) BJS6-20 1SNA174784R2000 10 26.70
5 6
4 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10 0.7
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
7 8 7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block Blank card White RC610 1SNA233000R0100 10 7.50
markers RC65 1SNA232000R0000 10 3.60

1SNC167037S0201
