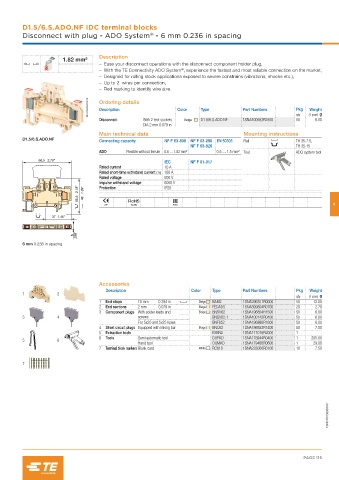

D1.5/6.S.ADO.NF IDC terminal blocks
®
Disconnect with plug - ADO System - 6 mm 0.236 in spacing

Description
1.82 mm²
– Ease your disconnect operations with the disconnect component holder plug,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.
1SNC163084F0014 Ordering details Color Type Part Numbers Pkg Weight

Description
50
Disconnect With 2 test sockets Beige D1.5/6.S.ADO.NF 1SNA400083R2500 qty (1 pce) g
8.00
DIA 2 mm 0.079 in
Main technical data Mounting instructions
D1.5/6.S.ADO.NF
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 0.6 … 1.82 mm² 0.5 … 1.5 mm² Tool ADO system tool
68,5 2.70"
IEC NF F 61-017
Rated current 10 A
Rated short-time withstand current (1s) 180 A
Rated voltage 500 V
Impulse withstand voltage 6000 V
2.18" 1.89" Protection IP20
55,5 48
CE RoHS EAC 4
37 1.46"

.236"
6
6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 2 mm 0.079 in Beige FEDAD5 1SNA399804R0700 20 2.70
3 Component plugs With solder leads and Beige BNSV62 1SNA196854R1500 50 6.00
3 4 screws BNSV62-1 1SNA400142R0400 50 6.00
For 5x20 and 5x25 fuses BNF652 1SNA196998R1600 50 6.00
4 Short circuit plugs Equipped with linking bar Beige BNC62 1SNA196853R1400 50 7.00
5 Extraction tools EXBN2 1SNA171018R2000 1
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5 6
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50
7

1SNC167080S0201
