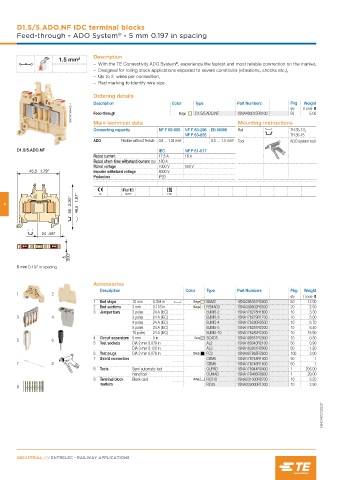

Page 112 - Railways Applications Terminal blocks

D1.5/5.ADO.NF IDC terminal blocks
®
Feed-through - ADO System - 5 mm 0.197 in spacing

Description
1.5 mm²
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.

Ordering details Color Type Part Numbers Pkg Weight
Description
1SNC167094V0014 Feed-through Beige D1.5/5.ADO.NF 1SNA400315R0100 qty (1 pce) g
50
5.00
Main technical data
Rail
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Mounting instructions TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 0.6 … 1.34 mm² 0.5 … 1.5 mm² Tool ADO system tool
D1.5/5.ADO.NF IEC NF F 61-017
Rated current 17.5 A 16 A
Rated short-time withstand current (1s) 180 A
Rated voltage 1000 V 500 V
Impulse withstand voltage 8000 V
Protection IP20

CE RoHS EAC
4

5 mm 0.197 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 3 mm 0.118 in Beige FEMAD3 1SNA399802R0500 20 2.50
3 Jumper bars 2 poles 24 A (IEC) BJMI5-2 1SNA176278R1600 10 3.30
3 4 3 poles 24 A (IEC) BJMI5-3 1SNA176279R1700 10 5.00
4 poles 24 A (IEC) BJMI5-4 1SNA176280R0500 10 6.70
5 poles 24 A (IEC) BJMI5-5 1SNA176281R2200 10 8.40
10 poles 24 A (IEC) BJMI5-10 1SNA176282R2300 10 16.90
4 Circuit separators 0 mm 0 in Grey SCAD5 1SNA199551R2000 10 0.30
5 6
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
7 Shield connectors CBM5 1SNA178745R1400 50 1
7 8 CBM8 1SNA178746R1500 50 1
8 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 Terminal block Blank card White RC510 1SNA231000R0700 10 5.20
markers RC55 1SNA230000R1200 10 2.90
9

1SNC167072S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
