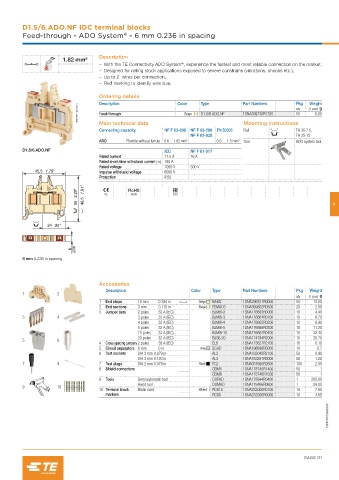

Page 113 - Railways Applications Terminal blocks

D1.5/6.ADO.NF IDC terminal blocks
®
Feed-through - ADO System - 6 mm 0.236 in spacing

Description
1.82 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.

Ordering details Color Type Part Numbers Pkg Weight
Description
1SNC167122V0014 Feed-through Beige D1.5/6.ADO.NF 1SNA399730R1700 qty (1 pce) g
50
6.00
Main technical data
Rail
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Mounting instructions TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 0.6 … 1.82 mm² 0.5 … 1.5 mm² Tool ADO system tool
D1.5/6.ADO.NF IEC NF F 61-017
Rated current 17.5 A 16 A
Rated short-time withstand current (1s) 180 A
Rated voltage 1000 V 500 V
Impulse withstand voltage 8000 V
Protection IP20

CE RoHS EAC
4

6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 3 mm 0.118 in Beige FEMAD3 1SNA399802R0500 20 2.50
3 Jumper bars 2 poles 32 A (IEC) BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles 32 A (IEC) BJMI6-3 1SNA176664R0100 10 6.70
4 poles 32 A (IEC) BJMI6-4 1SNA176665R0200 10 8.90
5 poles 32 A (IEC) BJMI6-5 1SNA176666R0300 10 11.20
10 poles 32 A (IEC) BJMI6-10 1SNA176667R0400 10 22.40
20 poles 32 A (IEC) BJS6-20 1SNA174784R2000 10 26.70
5 6
4 Cross spacing jumpers 2 poles 35 A (IEC) EL6 1SNA173627R2100 10 0.10
5 Circuit separators 0 mm 0 in Grey SCAD 1SNA196896R0000 10 0.7
6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
7 8 7 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
8 Shield connectors CBM5 1SNA178745R1400 50 1
CBM8 1SNA178746R1500 50 1
9 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
9 10
10 Terminal block Blank card White RC610 1SNA233000R0100 10 7.50
markers RC65 1SNA232000R0000 10 3.60
1SNC167032S0201

PAGE 111
