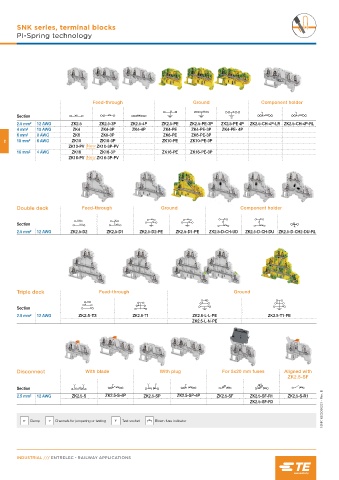

Page 20 - Railways Applications Terminal blocks

SNK series, terminal blocks
PI-Spring technology

Feed-through Ground Component holder

Section
2.5 mm² 12 AWG ZK2.5 ZK2.5-3P ZK2.5-4P ZK2.5-PE ZK2.5-PE-3P ZK2.5-PE 4P ZK2.5-CH-4P-LR ZK2.5-CH-4P-RL
4 mm² 10 AWG ZK4 ZK4-3P ZK4-4P ZK4-PE ZK4-PE-3P ZK4-PE- 4P
6 mm² 8 AWG ZK6 ZK6-3P ZK6-PE ZK6-PE-3P
2 10 mm² 6 AWG ZK10 ZK10-3P ZK10-PE ZK10-PE-3P
ZK10-PV New ZK10-3P-PV
16 mm² 4 AWG ZK16 ZK16-3P ZK16-PE ZK16-PE-3P
ZK16-PV New ZK16-3P-PV

Double deck Feed-through Ground Component holder

Section
2.5 mm² 12 AWG ZK2.5-D2 ZK2.5-D1 ZK2.5-D2-PE ZK2.5-D1-PE ZK2.5-D-CH-UD ZK2.5-D-CH-DU ZK2.5-D-CH2-DU-RL

Triple deck Feed-through Ground

Section
2.5 mm² 12 AWG ZK2.5-T3 ZK2.5-T1 ZK2.5-L-L-PE ZK2.5-T1-PE
ZK2.5-L-N-PE

Disconnect With blade With plug For 5x20 mm fuses Aligned with
ZK2.5-SF

Section
1SNK162020S0201 - Rev. B
2.5 mm² 12 AWG ZK2.5-S ZK2.5-S-4P ZK2.5-SP ZK2.5-SP-4P ZK2.5-SF ZK2.5-SF-R1 ZK2.5-S-R1
ZK2.5-SF-R3

Clamp - Channels for jumpering or testing - Test socket - Blown-fuse indicator

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
