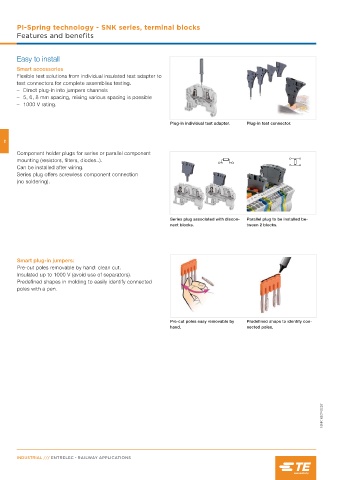

PI-Spring technology - SNK series, terminal blocks
Features and benefits

Easy to install

Smart accessories
Flexible test solutions from individual insulated test adapter to
test connectors for complete assemblies testing.
– Direct plug-in into jumpers channels
– 5, 6, 8 mm spacing, mixing various spacing is possible
– 1000 V rating.

Plug-in individual test adapter. Plug-in test connector.

2

Component holder plugs for series or parallel component
mounting (resistors, filters, diodes..).
Can be installed after wiring.
Series plug offers screwless component connection
(no soldering).

Series plug associated with discon- Parallel plug to be installed be-
nect blocks. tween 2 blocks.

Smart plug-in jumpers:
Pre-cut poles removable by hand: clean cut.
Insulated up to 1000 V (avoid use of separators).
Predefined shapes in molding to easily identify connected
poles with a pen.

Pre-cut poles easy removable by Predefined shape to identify con-
hand. nected poles.

1SNK162074S0201
