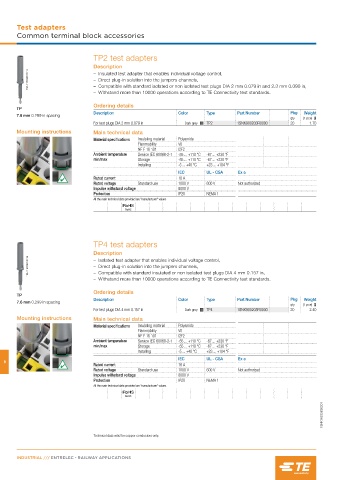

Test adapters
Common terminal block accessories

TP2 test adapters
Description
1SNK160093V0014 – Insulated test adapter that enables individual voltage control,
– Direct plug-in solution into the jumpers channels,
– Compatible with standard isolated or non isolated test plugs DIA 2 mm 0.079 in and 2.3 mm 0.090 in,
– Withstand more than 10000 operations according to TE Connectivity test standards.

Ordering details
TP
Description Color Type Part Number Pkg Weight
7.6 mm 0.299 in spacing
qty (1 pce) g
For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
Mounting instructions Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA Ex e
✔ Rated current 10 A
Rated voltage Standard use 1000 V 600 V Not authorized
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
All the main technical data provided are "manufacturer" values

RoHS

TP4 test adapters
Description
1SNK160093V0014 – Isolated test adapter that enables individual voltage control,
– Direct plug-in solution into the jumpers channels,
– Compatible with standard insulated or non isolated test plugs DIA 4 mm 0.157 in,
– Withstand more than 10000 operations according to TE Connectivity test standards.

Ordering details
TP
Description Color Type Part Number Pkg Weight
7.6 mm 0.299 in spacing
qty (1 pce) g
For test plugs DIA 4 mm 0.157 in Dark grey TP4 1SNK900205R0000 20 2.40
Mounting instructions Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA Ex e
9
✔ Rated current 16 A
Rated voltage Standard use 1000 V 600 V Not authorized
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
All the main technical data provided are "manufacturer" values

RoHS
1SNK160036S0201

Technical data valid for copper conductors only.
