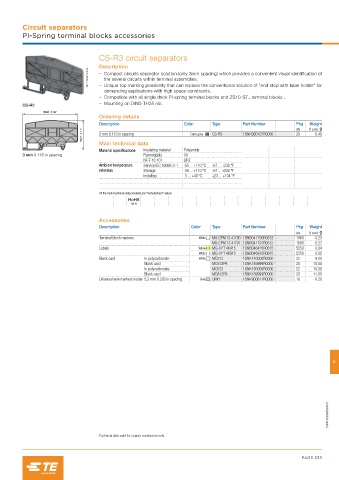

Page 335 - Railways Applications Terminal blocks

Circuit separators
PI-Spring terminal blocks accessories

CS-R3 circuit separators
Description
1SNK160241V0014 – Compact circuits separator solution (only 3mm spacing) which provides a convenient visual identification of
the several circuits within terminal assemblies,
– Unique top marking possibility that can replace the conventional solution of "end stop with label holder" for
demanding applications with high space constraints,
– Compatible with all single deck PI-spring terminal blocks and ZS10-ST...terminal blocks ,
– Mounting on DIN3-TH35 rail.
CS-R3
98.8 3.89"
Ordering details
Weight
Description Color Type Part Number Pkg (1 pce) g
53.7 2.11" 3 mm 0.118 in spacing Dark grey CS-R3 1SNK900107R0000 20 6.40
qty
Main technical data
Material specifications Insulating material Polyamide
3 mm 0.118 in spacing Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F

All the main technical data provided are "manufacturer" values
RoHS

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
MG-CPM 13 41791 1SNB041791R0612 1680 0.27
Labels Yellow MG-VYT 46415 1SNB046415R0615 5250 0.04
White MG-VYT 46915 1SNB046915R0615 5250 0.05
Blank card In polycarbonate White MC512 1SNK140000R0000 22 9.00
Blank card MC512PA 1SNK149999R0000 20 10.00
In polycarbonate MC612 1SNK150000R0000 22 10.00
Blank card MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

9

1SNK160098S0201

Technical data valid for copper conductors only.

PAGE 333
