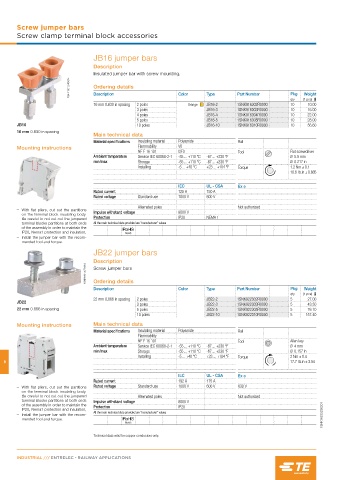

Page 340 - Railways Applications Terminal blocks

Screw jumper bars
Screw clamp terminal block accessories

JB16 jumper bars
Description
Insulated jumper bar with screw mounting.
1SNK160124F0014 Ordering details Pkg

Color
Description
Type
Weight
Part Number
qty (1 pce) g
16 mm 0.630 in spacing 2 poles Orange JB16-2 1SNK916302R0000 10 10.00
3 poles JB16-3 1SNK916303R0000 10 16.00
4 poles JB16-4 1SNK916304R0000 10 22.00
5 poles JB16-5 1SNK916305R0000 10 28.00
JB16 10 poles JB16-10 1SNK916310R0000 10 56.60
16 mm 0.630 in spacing
Main technical data
Material specifications Insulating material Polyamide Rail
Mounting instructions Flammability V0
NF F 16 101 I2F3 Tool Flat screwdriver
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 5.5 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.217 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 1.2 Nm ± 0.1
10.6 lb.in ± 0.885
IEC UL - CSA Ex e
Rated current 125 A 150 A
Rated voltage Standard use 1000 V 600 V
Alternated poles Not authorized
– With flat pliers, cut out the partitions
on the terminal block insulating body. Impulse withstand voltage 8000 V
Be careful to not cut out the jumpered Protection IP20 NEMA 1
terminal blocks partitions at both ends All the main technical data provided are "manufacturer" values
of the assembly in order to maintain the
IP20, Nema1 protection and insulation, RoHS
– Install the jumper bar with the recom-
mended tool and torque.
JB22 jumper bars
Description
1SNK160100F0014 Screw jumper bars

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
22 mm 0.866 in spacing 2 poles JB22-2 1SNK922302R0000 5 27.00
JB22
3 poles JB22-3 1SNK922303R0000 5 43.30
22 mm 0.866 in spacing 5 poles JB22-5 1SNK922305R0000 5 76.10
10 poles JB22-10 1SNK922310R0000 5 157.40
Mounting instructions Main technical data
Material specifications Insulating material Polyamide Rail
Flammability
NF F 16 101 Tool Allen key
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 4 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.157 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 2 Nm ± 0.4
9 17.7 lb.in ± 3.54

IEC UL - CSA Ex e
Rated current 192 A 175 A
– With flat pliers, cut out the partitions Rated voltage Standard use 1000 V 600 V 630 V
on the terminal block insulating body.
Be careful to not cut out the jumpered Alternated poles Not authorized
terminal blocks partitions at both ends Impulse withstand voltage 8000 V
of the assembly in order to maintain the Protection IP20
IP20, Nema1 protection and insulation,
All the main technical data provided are "manufacturer" values
– Install the jumper bar with the recom- 1SNK160032S0201
mended tool and torque.
RoHS

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
