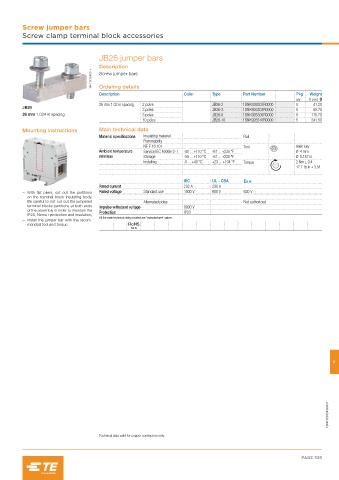

Page 341 - Railways Applications Terminal blocks

Screw jumper bars
Screw clamp terminal block accessories

JB26 jumper bars
Description
1SNK160100F0014 Screw jumper bars

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
26 mm 1.02 in spacing 2 poles JB26-2 1SNK926302R0000 5 41.20
JB26
3 poles JB26-3 1SNK926303R0000 5 65.70
26 mm 1.024 in spacing 5 poles JB26-5 1SNK926305R0000 5 115.70
10 poles JB26-10 1SNK926310R0000 5 241.50
Mounting instructions Main technical data
Material specifications Insulating material Rail
Flammability
NF F 16 101 Tool Allen key
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 4 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.157 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 2 Nm ± 0.4
17.7 lb.in ± 3.54

IEC UL - CSA Ex e
Rated current 232 A 230 A
– With flat pliers, cut out the partitions Rated voltage Standard use 1000 V 600 V 630 V
on the terminal block insulating body.
Be careful to not cut out the jumpered Alternated poles Not authorized
terminal blocks partitions at both ends Impulse withstand voltage 8000 V
of the assembly in order to maintain the Protection IP20
IP20, Nema1 protection and insulation,
All the main technical data provided are "manufacturer" values
– Install the jumper bar with the recom-
mended tool and torque.
RoHS

9

1SNK160034S0201

Technical data valid for copper conductors only.
