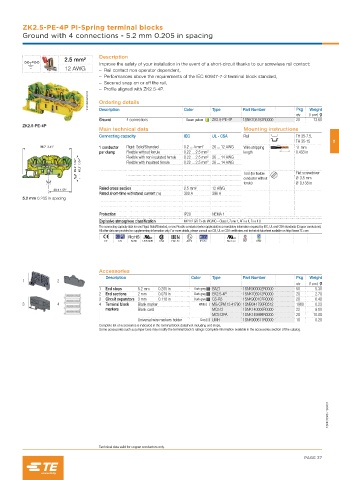

ZK2.5-PE-4P PI-Spring terminal blocks
         Ground with 4 connections - 5.2 mm 0.205 in spacing



                                    Description
                        2.5 mm²
                                    Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
                        12 AWG         – Rail contact non operator dependent,
                                       – Performances above the requirements of the IEC 60947-7-2 terminal block standard,
                                       – Secured snap on or off the rail,
                                       – Profile aligned with ZK2.5-4P.
                                1SNK162032V0014  Ordering details


                                    Description
                                                                            Type
                                                                                      Part Number
                                                                  Color
                                                                                                              Weight
                                                                                                         Pkg
                                                                                                         qty  (1 pce) g
                                    Ground    4 connections       Green-yellow  ZK2.5-PE-4P  1SNK705152R0000  20  13.60
         ZK2.5-PE-4P
                                    Main technical data                                Mounting instructions
                                    Connecting capacity           IEC       UL - CSA   Rail              TH 35-7.5,
                                                                                                         TH 35-15     2
               86.7  3.41"          1 conductor   Rigid: Solid/Stranded  0.2 ... 4 mm²  26 ... 12 AWG  Wire stripping   11 mm
                                    per clamp  Flexible without ferrule  0.22 ... 2.5 mm²  length        0.433 in
                                             Flexible with non insulated ferrule  0.22 ... 2.5 mm² 26 ... 14 AWG
                            49.2  1.94"  41.7  1.64"  Flexible with insulated ferrule  0.22 ... 2.5 mm² 26 ... 14 AWG
                                                                                       Tool (for flexible   Flat screwdriver
                                                                                       conductor without   Ø 3.5 mm
                                                                                       ferrule)          Ø 0.138 in
                    40.1 1.58"      Rated cross section           2.5 mm²   12 AWG
                                    Rated short-time withstand current (1s)  300 A  396 A
         5.2 mm 0.205 in spacing
                                    Protection                    IP20      NEMA 1
                                    Explosive atmosphere classification  IM2 II 2 GD Ex eb I/IIC/IIIC – Class I, Zone 1, AEx e II, Ex e II U
                                    The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
                                    All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

                                      CE   CB  RoHS  USR CNR  CSA  EAC Ex  ATEX  IECEx  Haz Loc  BV  DNV




                                    Accessories
                                      Description                   Color   Type      Part Number        Pkg  Weight
         1           2
                                                                                                         qty  (1 pce) g
                                    1  End stops  5.2 mm   0.205 in  Dark grey  BAZ1  1SNK900002R0000    50     5.30
                                    2  End sections  2 mm   0.079 in  Dark grey  EK2.5-4P  1SNK705912R0000  20  2.70
                                    3  Circuit separators 3 mm   0.118 in  Dark grey  CS-R3  1SNK900107R0000  20  6.40
         3           4              4  Terminal block   Blank marker   White  MG-CPM 13 41790 1SNB041790R0512  1960  0.23
                                      markers    Blank card                 MC512     1SNK140000R0000    22     9.00
                                                                            MC512PA   1SNK149999R0000    20    10.00
                                                 Universal wire markers holder  Grey  UMH  1SNK900611R0000  10  0.20
                                    Complete list of accessories is indicated in the terminal block datasheet including end stops.
                                    Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.














                                                                                                                    1SNK162041S0201








                                    Technical data valid for copper conductors only.
