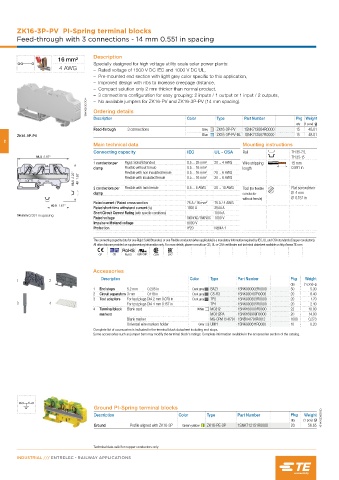

ZK16-3P-PV PI-Spring terminal blocks
Feed-through with 3 connections - 14 mm 0.551 in spacing

Description
16 mm²
Specially designed for high voltage utility scale solar power plants:
4 AWG – Rated voltage of 1500 V DC IEC and 1000 V DC UL,
– Pre-mounted end section with light grey color specific to this application,
– Improved design with ribs to increase creepage distance,
– Compact solution only 2 mm thicker than normal product,
– 3 connections configuration for easy grouping: 2 inputs / 1 output or 1 input / 2 outputs,
1SNK162130V0014 Ordering details
– No available jumpers for ZK16-PV and ZK16-3P-PV (14 mm spacing).

Description Color Type Part Number Pkg Weight
qty (1 pce) g
Feed-through 3 connections Grey ZK16-3P-PV 1SNK712064R0000 15 48.01
ZK16-3P-PV Blue ZK16-3P-PV-BL 1SNK712067R0000 15 48.01
2
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
98.3 3.87" TH 35-15
1 conductor per Rigid: Solid/Stranded 0.5 ... 25 mm² 20 ... 4 AWG Wire stripping 15 mm
clamp Flexible without ferrule 0.5 ... 16 mm² 20 ... 6 AWG length 0.591 in
0.5 ... 16 mm²
Flexible with non insulated ferrule
56.5 2.22" 49 1.93" Flexible with insulated ferrule 0.5 ... 16 mm² 20 ... 6 AWG
2 conductors per Flexible with twin ferrule 0.5 ... 6 AWG 20 ... 10 AWG Tool (for flexible Flat screwdriver
clamp conductor Ø4 mm
without ferrule) Ø0.157 in
Rated current / Rated cross section 76 A / 16 mm² 75 A / 4 AWG
40.8 1.61"
Rated short-time withstand current (1s) 1920 A 2544 A
Short Circuit Current Rating (with specific conditions) 100 kA
14 mm 0.551 in spacing
Rated voltage 1000 V AC / 1500 V DC 1000 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

CE CB RoHS USR CNR CSA EAC

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
3 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
3 4 For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
4 Terminal block Blank card White MC812 1SNK160000R0000 22 10.00
markers MC812PA 1SNK169999R0000 20 14.00
Blank marker MG-CPM 13 41791 1SNB041791R0612 1680 0.273
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g 1SNK162083S0201
Ground Profile aligned with ZK16-3P Green-yellow ZK16-PE-3P 1SNK712151R0000 20 56.65

Technical data valid for copper conductors only.
