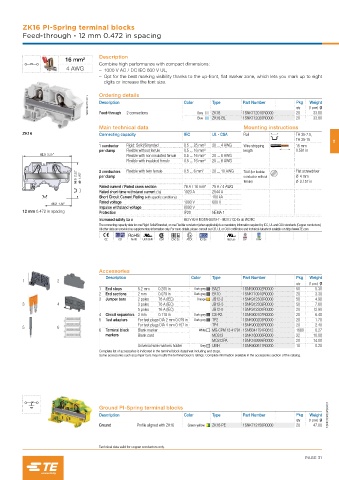

ZK16 PI-Spring terminal blocks
Feed-through - 12 mm 0.472 in spacing

Description
16 mm²
Combine high performance with compact dimensions:
4 AWG – 1000 V AC / DC IEC 600 V UL,
– Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight
digits or increase the font size.

1SNK162075V0014 Ordering details Color Type Part Number Pkg (1 pce) g
Weight
Description
qty
2 connections
Feed-through
Grey
ZK16-BL
20
1SNK712020R0000
33.80
Blue ZK16 1SNK712010R0000 20 33.80
Main technical data Mounting instructions
ZK16 Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15 2
1 conductor Rigid: Solid/Stranded 0.5 ... 25 mm² 20 ... 4 AWG Wire stripping 15 mm
per clamp Flexible without ferrule 0.5 ... 16 mm² length 0.591 in
82.5 3.25"
Flexible with non insulated ferrule 0.5 ... 16 mm² 20 ... 6 AWG
Flexible with insulated ferrule 0.5 ... 16 mm² 20 ... 6 AWG
56.5 2.22" 49 1.93" 2 conductors Flexible with twin ferrule 0.5 ... 6 mm² 20 ... 10 AWG Tool (for flexible Flat screwdriver
Ø 4 mm
conductor without
per clamp
Ø 0.157 in
ferrule)
Rated current / Rated cross section 76 A / 16 mm² 75 A / 4 AWG
Rated short-time withstand current (1s) 1920 A 2544 A
Short Circuit Current Rating (with specific conditions) 100 kA
46.2 1.82" Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
12 mm 0.472 in spacing Protection IP20 NEMA 1
Increased safety Ex e 693 V 69 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/IIC/IIIC
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx Haz Loc BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK10 1SNK710910R0000 20 3.30
3 Jumper bars 2 poles 76 A (IEC) Orange JB12-2 1SNK912302R0000 50 4.90
3 4 3 poles 76 A (IEC) JB12-3 1SNK912303R0000 50 7.60
5 poles 76 A (IEC) JB12-5 1SNK912305R0000 20 12.90
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 6
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162032S0201
qty (1 pce) g
Ground Profile aligned with ZK16 Green-yellow ZK16-PE 1SNK712150R0000 20 47.00

Technical data valid for copper conductors only.
