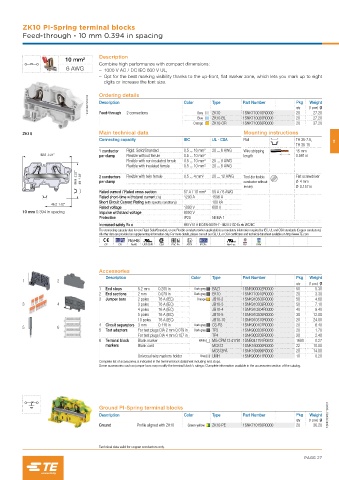

Page 29 - Railways Applications Terminal blocks

ZK10 PI-Spring terminal blocks
Feed-through - 10 mm 0.394 in spacing

Description
10 mm²
Combine high performance with compact dimensions:
6 AWG – 1000 V AC / DC IEC 600 V UL,
– Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight
digits or increase the font size.

1SNK162072V0014 Ordering details Color Type Part Number Pkg (1 pce) g
Description
Weight
qty
Feed-through
2 connections
Grey
ZK10-BL
27.20
20
1SNK710020R0000
Blue ZK10 1SNK710010R0000 20 27.20
Orange ZK10-OR 1SNK710030R0000 20 27.20
ZK10 Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5, 2
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 16 mm² 20 ... 6 AWG Wire stripping 15 mm
82.5 3.25" per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.591 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
56.5 2.22" 49 1.93" 2 conductors Flexible with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Tool (for flexible Flat screwdriver
Ø 4 mm
per clamp
conductor without
ferrule) Ø 0.157 in
Rated current / Rated cross section 57 A / 10 mm² 55 A / 6 AWG
Rated short-time withstand current (1s) 1200 A 1596 A
Short Circuit Current Rating (with specific conditions) 100 kA
46.2 1.82"
Rated voltage 1000 V 600 V
10 mm 0.394 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 693 V 51 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/IIC/IIIC
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx Haz Loc BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK10 1SNK710910R0000 20 3.30
3 Jumper bars 2 poles 76 A (IEC) Orange JB10-2 1SNK910302R0000 50 4.60
3 4 3 poles 76 A (IEC) JB10-3 1SNK910303R0000 50 7.10
4 poles 76 A (IEC) JB10-4 1SNK910304R0000 40 9.40
5 poles 76 A (IEC) JB10-5 1SNK910305R0000 30 12.00
10 poles 76 A (IEC) JB10-10 1SNK910310R0000 20 24.00
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 6
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162031S0201
qty (1 pce) g
Ground Profile aligned with ZK10 Green-yellow ZK10-PE 1SNK710150R0000 20 36.20

Technical data valid for copper conductors only.
PAGE 27
