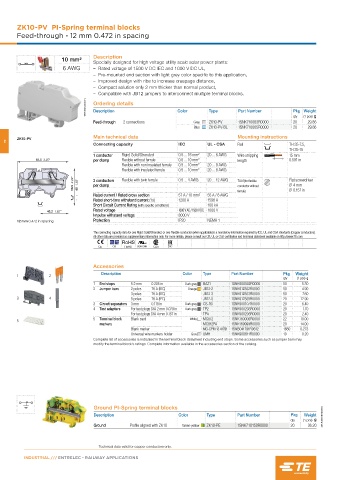

Page 30 - Railways Applications Terminal blocks

ZK10-PV PI-Spring terminal blocks
Feed-through - 12 mm 0.472 in spacing

Description
10 mm²
Specially designed for high voltage utility scale solar power plants:
6 AWG – Rated voltage of 1500 V DC IEC and 1000 V DC UL,
– Pre-mounted end section with light grey color specific to this application,
– Improved design with ribs to increase creepage distance,
– Compact solution only 2 mm thicker than normal product,
– Compatible with JB12 jumpers to interconnect multiple terminal blocks.
1SNK162124V0014 Ordering details Color Type Part Number Pkg Weight
Description
Feed-through 2 connections Grey ZK10-PV 1SNK710063R0000 qty (1 pce) g
29.86
20
Blue ZK10-PV-BL 1SNK710065R0000 20 29.86
Main technical data Mounting instructions
ZK10-PV
2
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 16 mm² 20 ... 6 AWG Wire stripping 15 mm
82.5 3.25" per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.591 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 10 mm² 20 ... 8 AWG
56.5 2.22" 49 1.93" 2 conductors Flexible with twin ferrule 0.5 ... 4 AWG 20 ... 12 AWG Tool (for flexible Flat screwdriver
Ø4 mm
per clamp
conductor without
ferrule) Ø0.157 in
Rated current / Rated cross section 57 A / 10 mm² 55 A / 6 AWG
Rated short-time withstand current (1s) 1200 A 1596 A
Short Circuit Current Rating (with specific conditions) 100 kA
46.2 1.82" Rated voltage 1000 V AC / 1500 V DC 1000 V
Impulse withstand voltage 8000 V
12 mm 0.472 in spacing Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 Jumper bars 2 poles 76 A (IEC) Orange JB12-2 1SNK912302R0000 50 4.90
3 poles 76 A (IEC) JB12-3 1SNK912303R0000 50 7.60
3 4 5 poles 76 A (IEC) JB12-5 1SNK912305R0000 20 12.90
3 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Terminal block Blank card White MC812 1SNK160000R0000 22 10.00
5
markers MC812PA 1SNK169999R0000 20 14.00
Blank marker MG-CPM 13 41791 1SNB041791R0612 1680 0.273
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops. Some accessories such as jumper bars may
modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Ground PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight 1SNK162080S0201
qty (1 pce) g
Ground Profile aligned with ZK10 Green-yellow ZK10-PE 1SNK710150R0000 20 36.20

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
